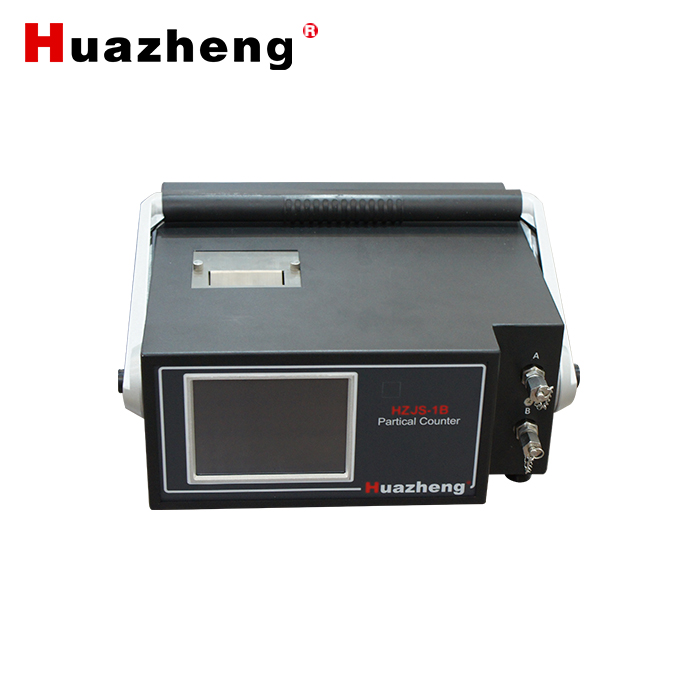

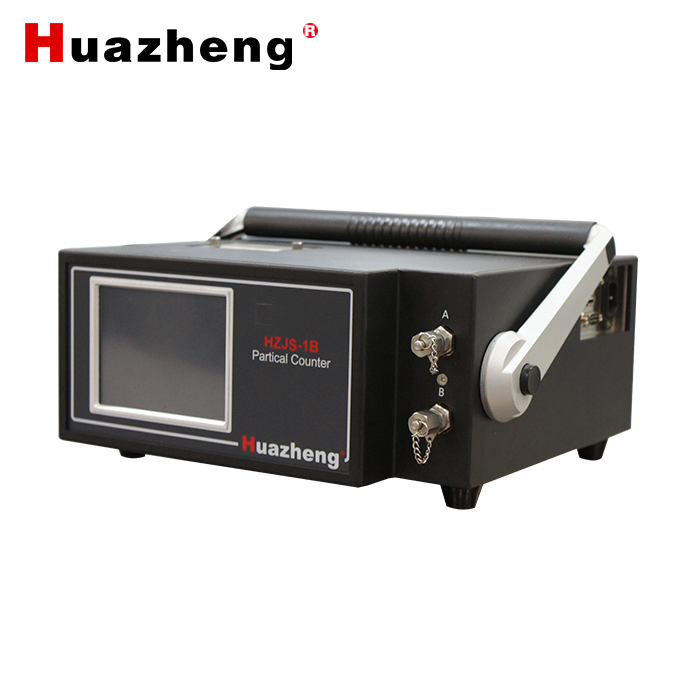

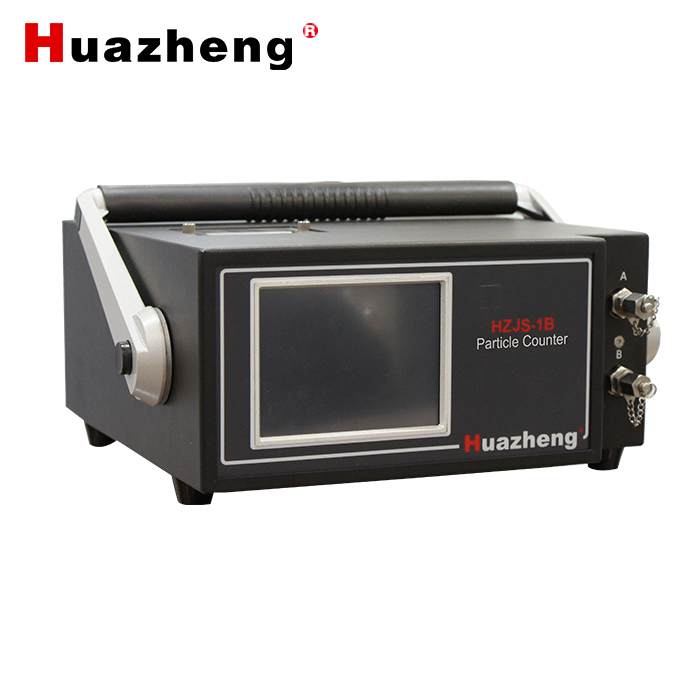

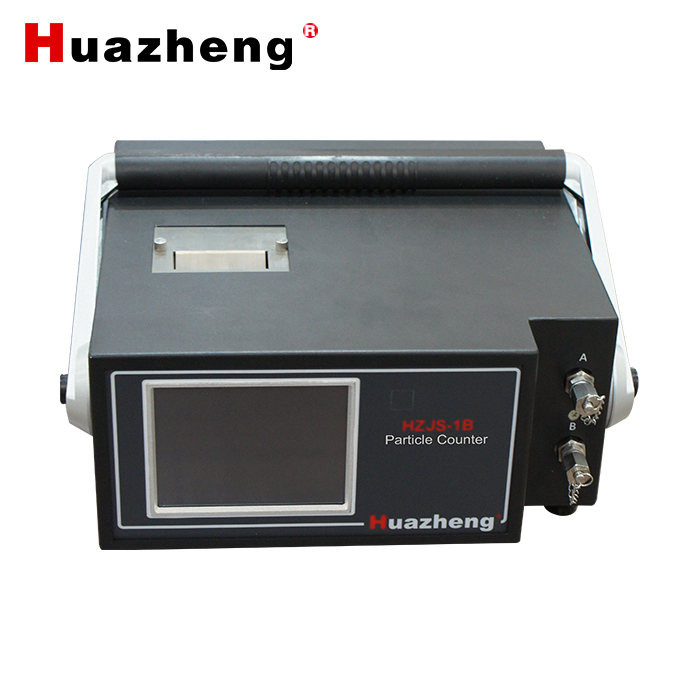

HZJS-1B Portable Liquid Oil Particle Counter

Huazheng Other Equipment

HZJS-1B Oil Particle Counter adopts Laser Extinction Technology, is designed to measure the particles’ size and quantity in oil liquid. It is Suitable for tests of pollution degree of solid particles in hydraulic oil, lubricating oil, fire resistant oil, insulating oil, turbine oil, organic liquid and polymer solution, etc. So our instrument can be used in aviation, spaceflight, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and many other fields.

GET SAMPLES BUY NOW

Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

HZJS-1B Portable Liquid Oil Particle Counter

I.Description

II.Technical Data

Size Range 1μm-100μm

Channel 8 channel(size can be set free in the range of selected curve)

Sample Volume ≥0.2ml

Sample Speed 5ml/min~80ml/min

Resolution ＜10%

RSD ＜2%

Coincidence deviation limit 10000/ml

Range of Pressure low: 0~6bar High:3~400bar

Viscosity ＜350cst

Storage Space 100 set

Power Supply AC220V±10%；50Hz；≤200W

Battery 5200mA； 6~8h

Data Output RS232 and printer inside

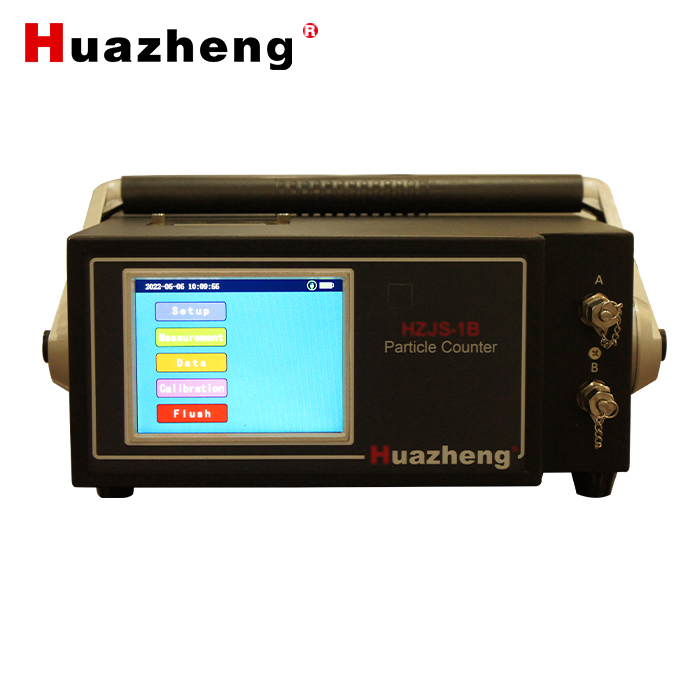

System Menu

Main Interface	Setup	time settings, print settings, measure settings, pressure settings, system settings, administrator settings, reset all settings
	Measurement	Online, Offline
	Data	View data, Blank data
	Calibration	Volume calibration, Size calibration, Noise level test
	Flush	Flush, Drain out, Back flush
