I.Scope Of Application

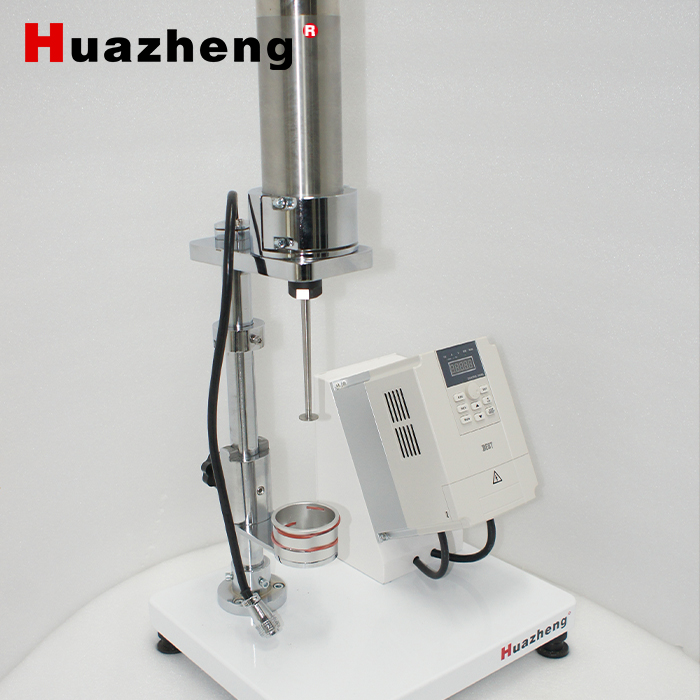

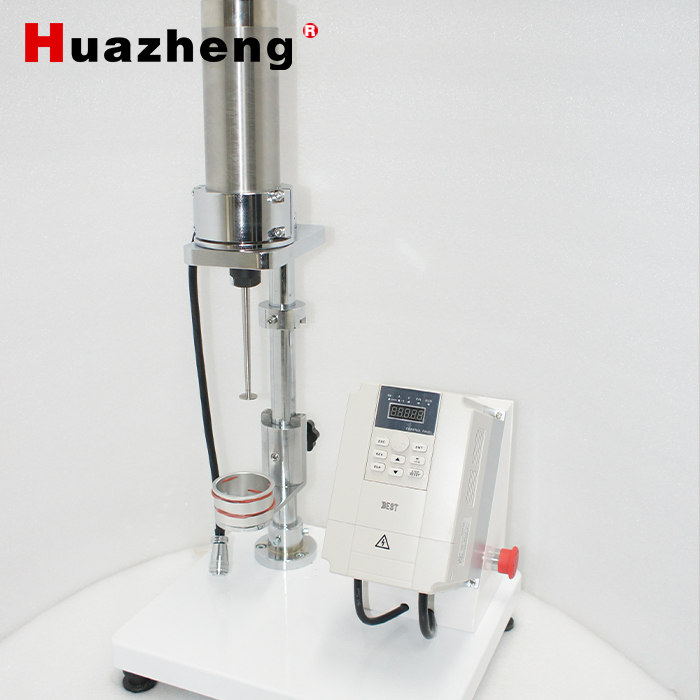

      High-speed mechanical stability tester is mainly used for latex production units and research institutes to do mechanical stability test on natural latex and synthetic latex, which is an essential instrument to improve the quality of latex.

II.Functions And Features

    The instrument is in accordance with the standard requirements of ISO 35, the instrument uses a motor with large backup capacity, the choice of high reliability, large torque high-speed motor, speed control system can be adjusted in real time according to the motor load changes in motor speed, speed accurate and smooth, speed adjustable.

III. Main Technical Performance Indicators

  3.1 Use conditions: temperature 10℃～40℃, humidity＜85﹪RH

3.2 Stirring speed: 1400O rPm to 2OO rpm

3.3 Indication error: ≤0.1﹪

3.4 Measurement resolution: l rpm

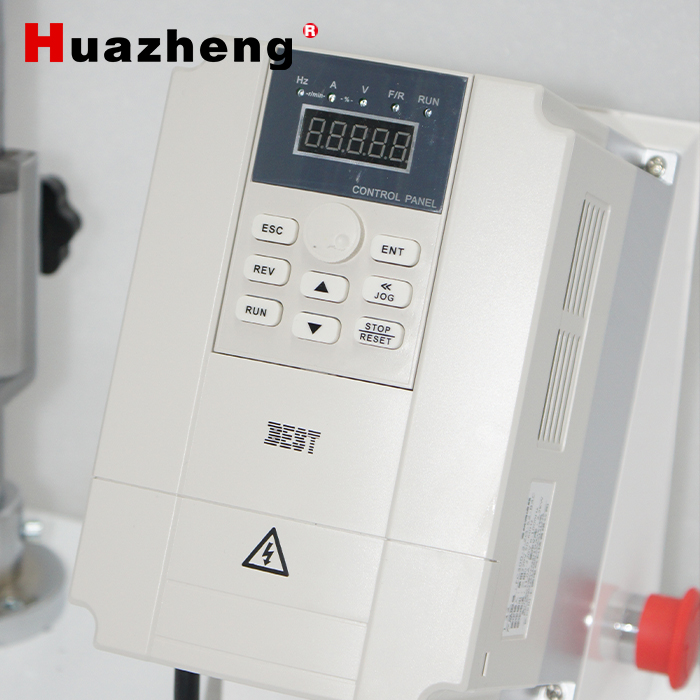

3.5 Display mode: Inverter LED display.

3.6 Power supply: 220V ≧ 10﹪, 501H2, 1500W

3.7 Minimum speed: 2000 rpm

3.8 Volume: 400 m m × 350 mm × 720 mm

3.9 Net weight: about 30Kg.

3.10 Specification of mixing disc.

Natural latex: Diameter 20.83mm 0.03mm Thickness 1.57mm 0.05mm

Synthetic latex: Diameter 36.12s 0.03lmn Thickness 1.58s 0.05mn

Latex container: 130mm high, 58.2mn inner diameter

3.11 Medium used: natural latex or synthetic latex.

3. 12 can run continuously for 1 hour (15 minutes of natural cooling is required for re-use).
