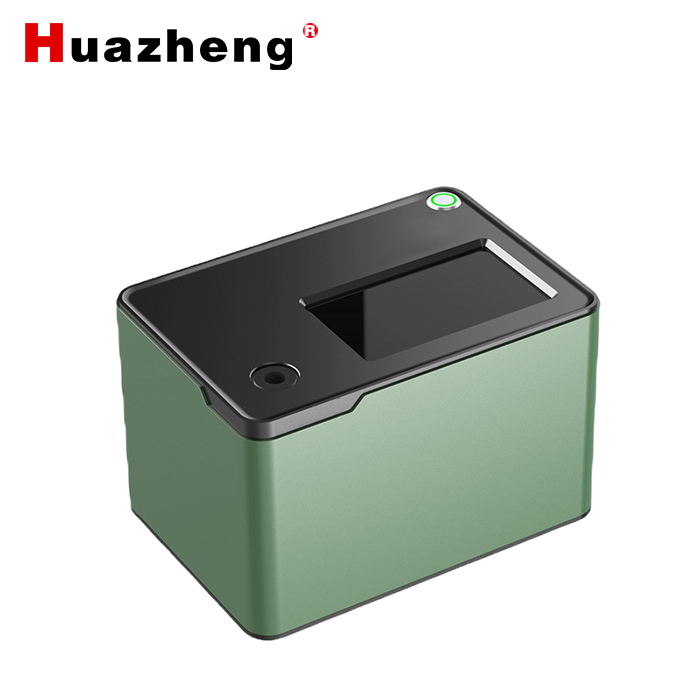

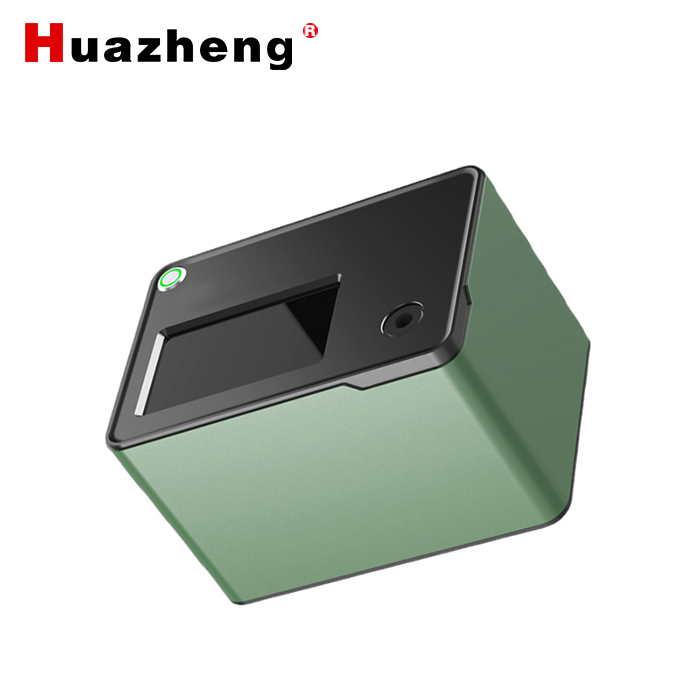

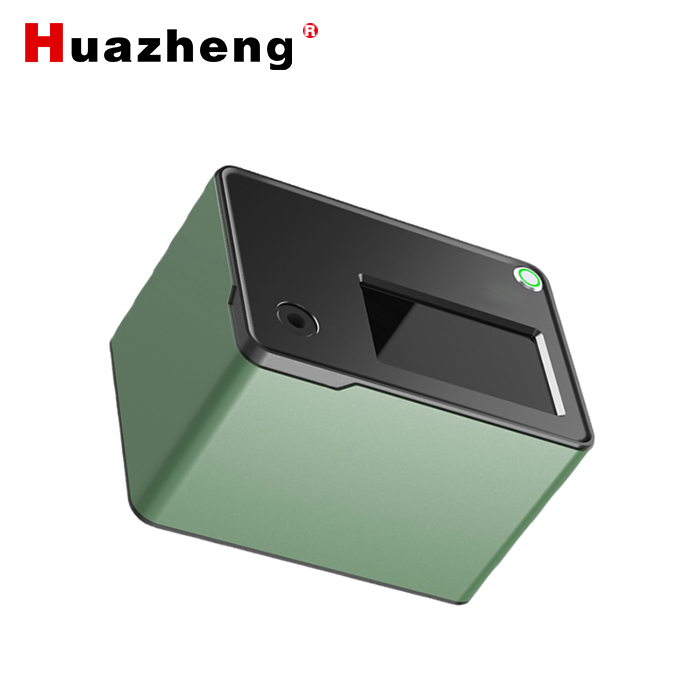

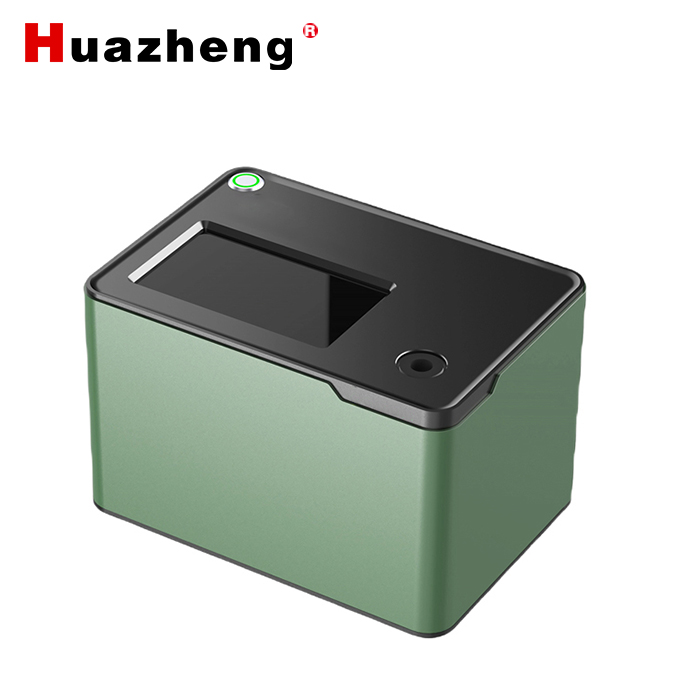

TTL-5 Portable Ferromagnetic Wear Chips Measuring Instrument
TTL-5 Portable Ferromagnetic Wear Chips Measuring Instrument
TTL-5 Portable Ferromagnetic Wear Chips Measuring Instrument
TTL-5 Portable Ferromagnetic Wear Chips Measuring Instrument
TTL-5 Portable Ferromagnetic Wear Chips Measuring Instrument
TTL-5 Portable Ferromagnetic Wear Chips Measuring Instrument
TTL-5 Portable Ferromagnetic Wear Chips Measuring Instrument

Huazheng Other Equipment

Portable Ferromagnetic Wear Chips Measuring Instrument


Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

I. Product Introduction

The main ways of mechanical equipment failure are wear, corrosion and fracture. Among them, wear failure accounts for as much as 60%-80% of the impact on mechanical equipment failure. Lubricating oil is the blood of mechanical equipment, and plays the role of sealing, lubrication, cleaning, cooling and corrosion prevention in mechanical equipment. Lubricating oil contains mechanical wear information, that is, the friction and wear characteristics of the friction pair surface material. By monitoring the lubricating oil, it can detect the contamination of the lubricating oil itself and analyze the wear state of the machine. The concentration of ferromagnetic particles in the lubricating oil is one of the direct indicators of the degree of wear of the controlled equipment. By performing daily ferromagnetic particle concentration analysis on the oil in use, the abnormal degree of wear of the equipment can be quickly identified to avoid unplanned downtime.

In terms of detection methods, the current iron content detection mainly includes atomic absorption method and atomic emission method. Although the atomic absorption spectrometry method is accurate, it is slow and complicated to operate. The atomic emission spectrometry method has been widely used, but it cannot effectively detect large wear particles (whether it is a rotating disk electrode or an inductive ion coupling method). It is not sensitive to large particles, which is sometimes fatal in monitoring and diagnosis, because the particles of normal wear of friction pairs are generally less than 10μm, while metal particles greater than 15μm are produced by abnormal wear.

Portable ferromagnetic wear debris measuring instrument TTL-5 uses the electromagnetic induction principle to measure the wear debris content by using the magnetic field change of the sensor coil caused by the ferromagnetic wear debris in the oil sample. It has a good linear relationship with the iron content and particle size of the oil sample. It has high sensitivity, accuracy and repeatability. It does not require sample pretreatment or organic solvents. It can measure the accurate content of ferromagnetic metal abrasive particles in various oil samples within a few seconds. The measurement results are directly expressed in actual concentration values (mg/L or ppm), which facilitates the user's interpretation and analysis of the data. It is widely used in defense, aerospace, shipbuilding, electric power, petrochemical, metallurgy, mining, road transportation and other fields.

II. Technical Parameters

Function

parameter

Scope of use

Oils and Greases

Output

Total ferromagnetic particle content, ferromagnetic particle concentration

Detection Methods

ASTM D8120

Detection range

0-5500ppm

Resolution

1ppm

Detection accuracy

±3%

Sampling volume

2mL

Detection speed

<5 seconds

Measurement accuracy

±3%

Display

5-inch touch screen

Storage Space

32G

Battery capacity

3400mAh

Operating temperature

0℃50℃

Host size

255*215*130

Weight (net weight)

2.85kg

III. Features

1. Rapid quantitative determination of the total amount of large-sized ferromagnetic particles in equipment oil

2. High sensitivity, resolution up to 1ppm

3. No sample pretreatment or organic solvent required

4. Fast detection speed, one data is measured in 5 seconds

5. Can analyze the iron content in lubricating oil and grease samples

6. Meet the needs of industrial sites and oil monitoring laboratories at the same time

7. The instrument operation is much easily. It only takes a few minutes to master. No professional training is required.

8. Chinese and English interfaces are optional, and the WINDOWS system has data recording, query, correction and trend analysis functions


related products

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

TTL-5 Portable Ferromagnetic Wear Chips Measuring Instrument

TTL-5 Portable Ferromagnetic Wear Chips Measuring Instrument

HZAI-6201W Dielectric Loss Factor Standard

HZAI-6201W Dielectric Loss Factor Standard

FA214AI Scale

FA214AI Scale

HZ-3510 Grounding Continuity Tester

HZ-3510 Grounding Continuity Tester

HZ2314A Latex High-Speed Mechanical Stability Tester

HZ2314A Latex High-Speed Mechanical Stability Tester

HZJS-1 ISO4406 Oil Particle Counter Machine

HZJS-1 ISO4406 Oil Particle Counter Machine

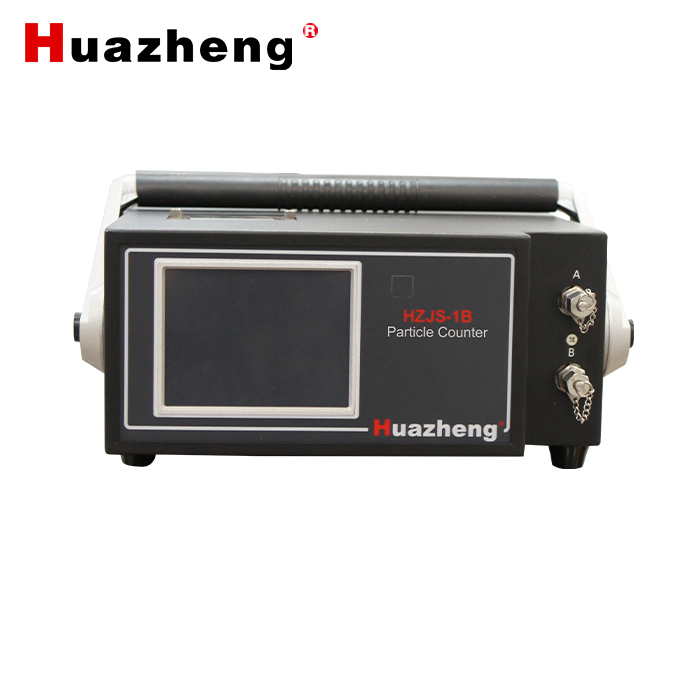

HZJS-1B Portable Liquid Oil Particle Counter
