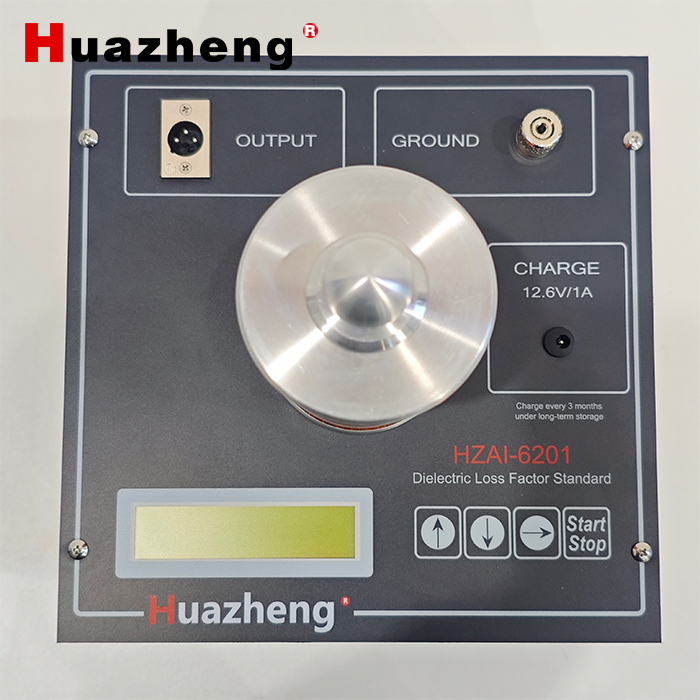

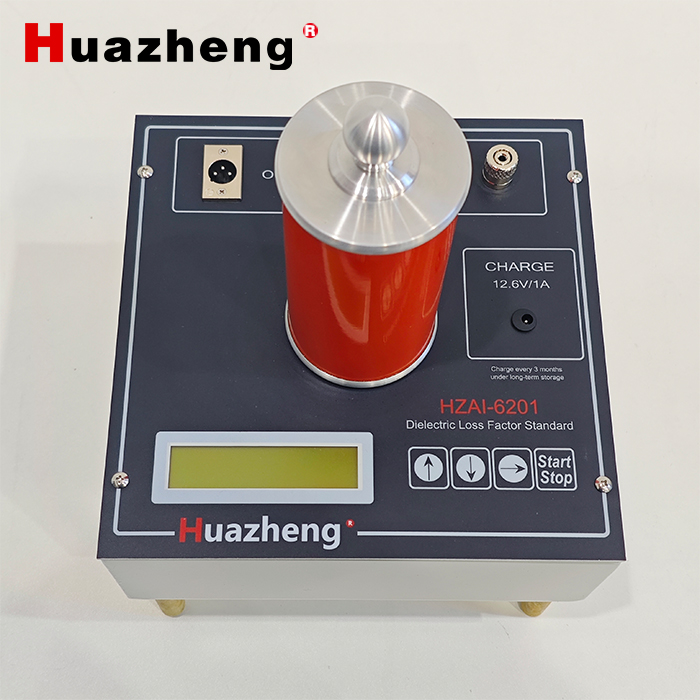

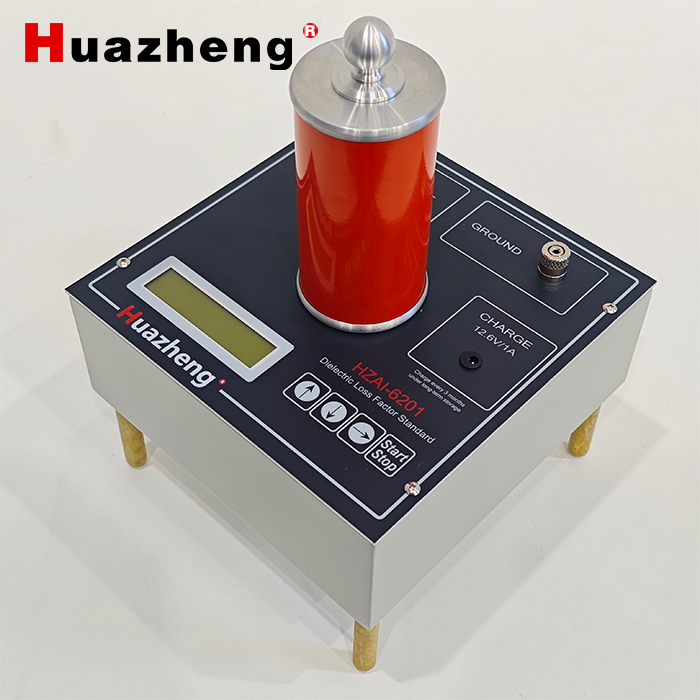

HZAI-6201 is 100pF/12kV high precision capacitance and dissipation factor standard. Which has following feathers:

(1)High precision SF6 filled standard capacitor with full shielded structure.

(2)30 dissipation factor ranges. DF/PF and serial/parallel mode selectable.

(3)Key operated.

(4)LCD display, powered with rechargeable battery.

Specifications

Principle Model:     RC serial

Main Capacitance:    100pF

Maximum voltage:    12kV

Capacitance Accuracy:   reading*0.5% + 0.1pF(*)

Dissipation Factor Accuracy:  reading*0.5% + 0.01%(*)

Dissipation Factor Ranges(%): 0.000, 0.005, 0.010, 0.020, 0.030, 0.040,

0.050, 0.060, 0.070, 0.080, 0.090, 0.100,

0.200, 0.300, 0.400, 0.500, 0.600, 0.700,

0.800, 0.900, 1.000, 2.000, 3.000, 4.000,

5.000, 6.000, 7.000, 8.000, 9.000, 10.00(**)

Operation Temperature:   23 ± 2 °C

Operation Humidity:    <70%

Charging Power Supply:   100~240VAC, 50/60Hz
