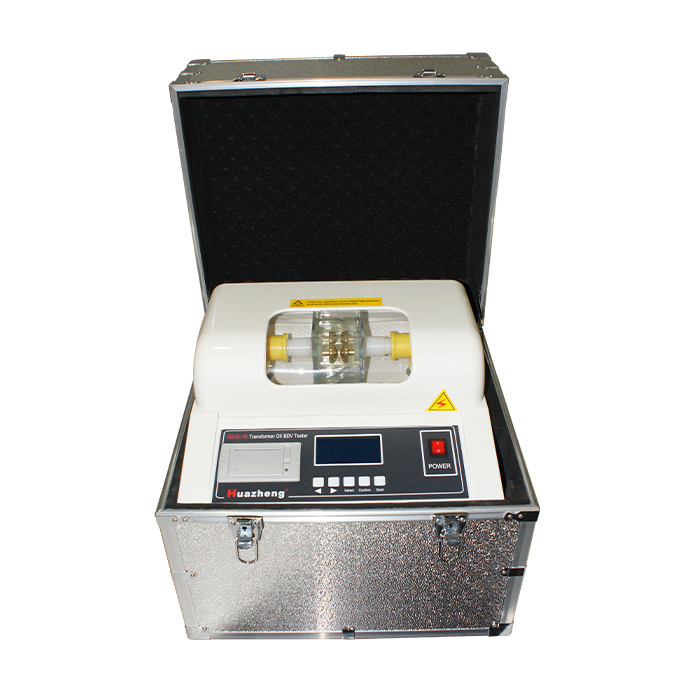

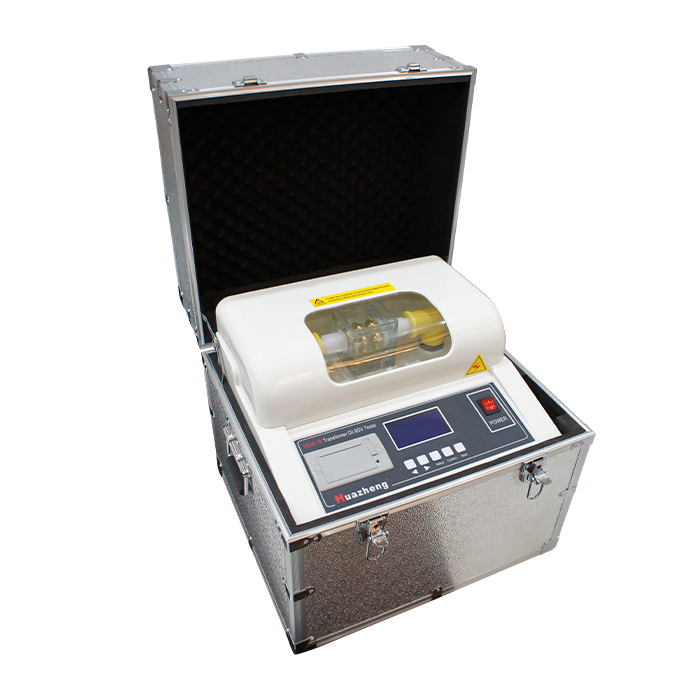

Huazheng Electric HZJQ-1B Dielectric Oil Withstand Voltage Test Set

Major Technical Indicators

1、Output voltage: 0～80KV (optional)

2、Voltage distortion rate: ＜3%

3、Voltage raising speed: 0.5～5 KV/S (adjustable)

4、Standing time: 15min (adjustable)

5、Boosting interval: 5 min (adjustable)

6、Boosting frequency: 1～9time(s) (optional)

7、Booster capacity: 1.5KVA

8、Measuring accuracy: ±3％

9、Supply voltage: AC220V±10% 50/60Hz

10、Power: 200W

11、Applicable temperature: 0℃～45℃

12、Applicable humidity: ＜75%RH

13、Overall dimension: 465×385×425

Precautions

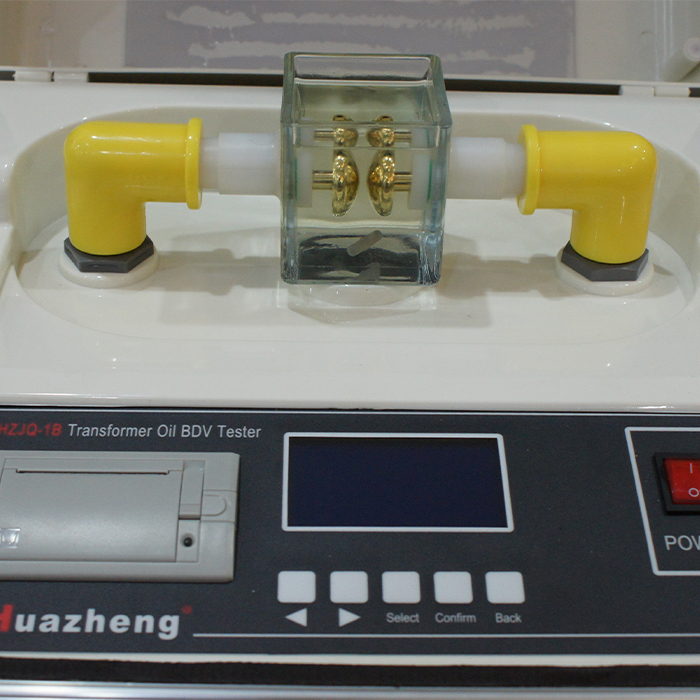

1. The selection, placing and electrode distance of the oil sample before testing shall meet relevant national and industrial standards.

2. The operators or other personnel are strictly forbidden to touch the casing after the power is switched on to avoid accidents.

3. The power shall be cut off immediately if any abnormal event is found during the operation.
