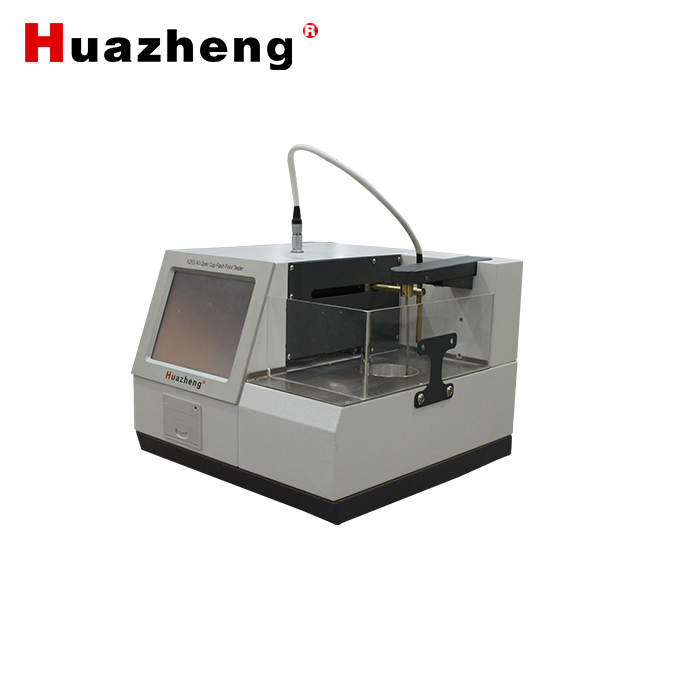

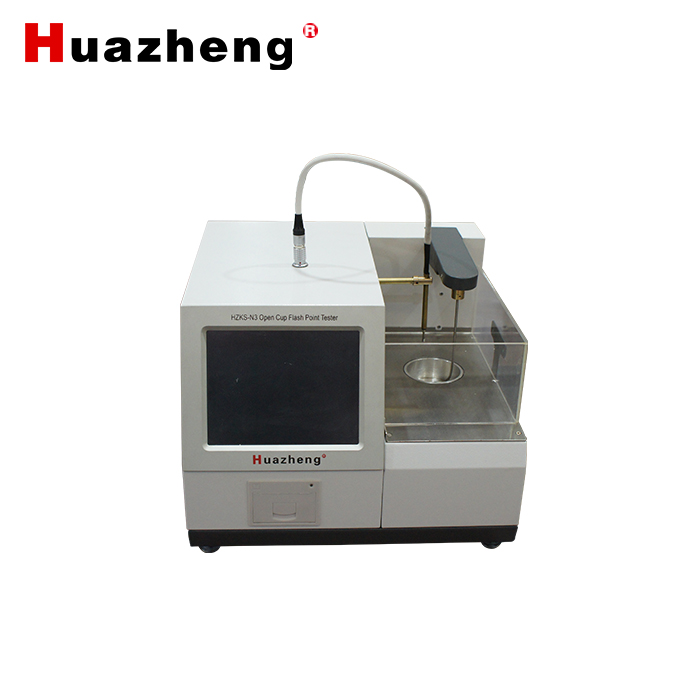

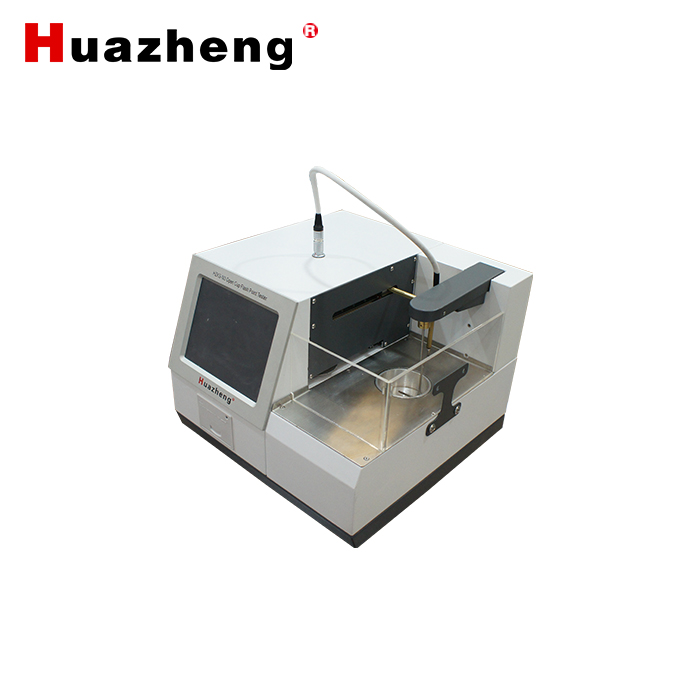

Huazheng Electric HZKS-N3 Open Cup Flash Point Test Apparatus

Flash Point Apparatus

The automatic open flash point tester should be installed in the laboratory with good ventilation device or in the laboratory or fume hood close to the fume hood, so as to timely eliminate the toxic gas in the measurement process, and ensure the safety and non-toxic of the operator.

GET SAMPLES BUY NOW

Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

Instrument characteristics

l Display interface: 8-inch color LCD touch screen.

l Temperature measuring element: PT100 (L-type armor).

l Ignition mode: the diameter of electronic ignition ball is 3-4mm (the temperature of the fireball can be adjusted).

l Flash point detection: UV flame sensor

l Output mode: embedded micro thermal printer.

l Safety protection: when the sample is on fire, the fire cover automatically covers the cup to extinguish the fire, and can also conduct the sample test of ignition.

l Wind protection: polymethylacrylic protective cover.

l The PID closed-loop temperature control technology is used to realize the good control of the temperature rising speed.

l Strong air cooling device is adopted to quickly cool the heating furnace.

l 100 groups of experimental data can be stored.

Technical parameter

Applicable standards	GB/T 3536-2008, GB/T 267-88, ASTM D92 other standards
Working power supply	AC220V 10% 50Hz
Heating power	600W (standby)
Overall power	maximum 750W
Ambient temperature	5-40 ° C
Resolution	0.1 ℃
