Technical Parameters Of Product

Technical parameters

1) Output rated voltage: see Table 3

2) Output frequency: 0.1 Hz, 0.05 Hz, and 0.02 Hz

3) Load capacity: 0.1 Hz max. 1.1 µF

0.05 Hz max. 2.2 µF

0.02 Hz max. 5.5 µF

4) Measurement accuracy: 3%

5) Voltage positive and negative peak error: ≤3%

6) Voltage waveform distortion: ≤5%

7) Service conditions: Indoors and outdoors; temperature: -10℃ ~ +40℃; humidity: ≤85％RH

8) Power fuse: see Table 3

9) Power supply: voltage 120 V, 60 Hz

Note: If a portable generator is used for power supply, the output voltage and frequency of the generator are required to be stable (generally it is required that power is greater than 3 kW, the frequency is 50 Hz, and the voltage is 220 V ± 5%

10) The capacitance of the tested product shall not exceed the maximum value for the rated capacitance of the instrument, and the values are shown in Table 3;

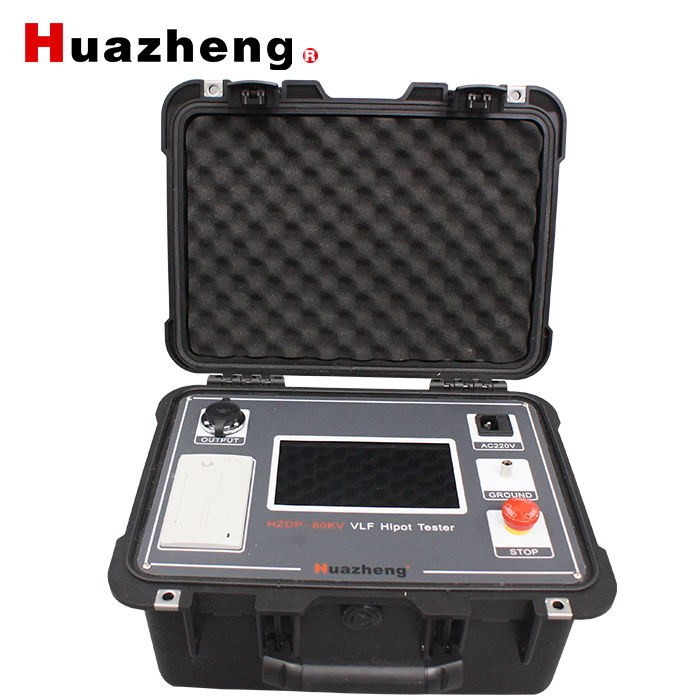

Table 3 Main Technical Parameters of Series VLF Hipot Tester
