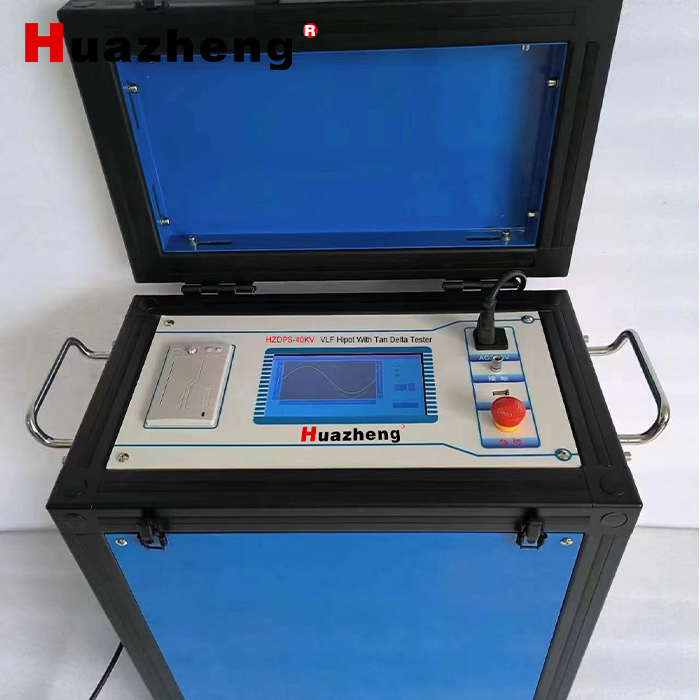

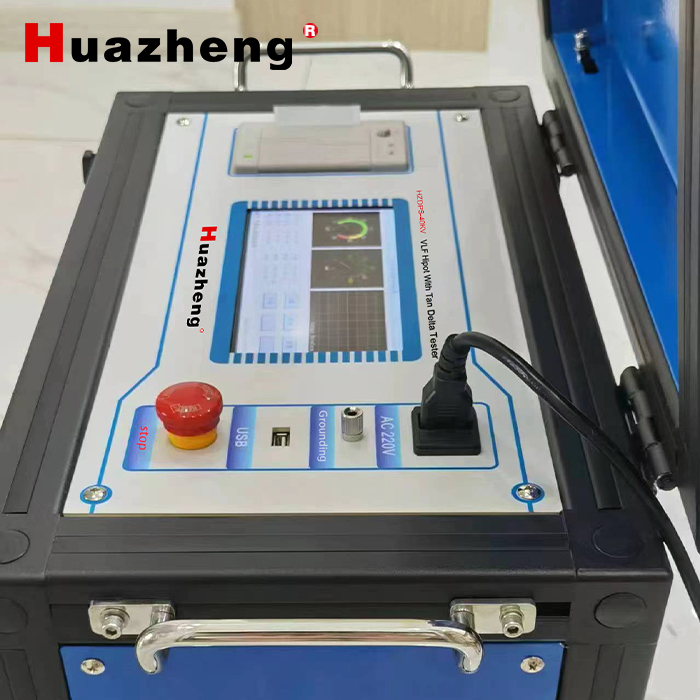

The new generation of this series of 0.1Hz VLF High Voltage Generator developed by our company adopts the latest power electronic components and the latest ARM7 microcontroller technology, further reducing the volume and weight of the equipment, enable fool operation, more stable performance, and overcoming the shortcomings of the first generation of mechanical booster with short service life, high failure rate and large volume.

Technical Parameters Of HZDPS Series

1.Voltage(Peak): 0-40kv,    Sensitivity: 0.1kV,     Accuracy: 1 %

2.Waveform: Ultra-low frequency sine wave, DC voltage, Voltage positive and negative peak error: ≤3%,     Voltage waveform distortion: ≤1%

3.Frequency range：0.1 Hz 0.05 Hz 0.02 Hz,    Load range(Ultra-low frequency test): 0nF–10μF

4.Current: Measurement range: 0–70 mA,    Sensitivity: 1μA,    Accuracy: 1 %

5.Tan Delta:

Ultra-low frequency sine wave voltage range: 1–40 kVrms

Load range: 50nF–5μF

Resolution: ≥1x10-6

Accuracy: ≥1x10-3

Measurement range: 1x10-3–21000x10-3

Tan Delta measurement frequency: 0.1Hz

Capacitance range: 50nF-5μF

Resistance value rang: 30MΩ-10GΩ

Dimensions: 48cm*28cm*58cm

Weight: 45kg

6.Working condition: indoor、outdoor; Temperature: -10℃～+40℃; Humidity:≤85％RH

7.Power supply: Frequency 50Hz,60hz, Voltage 100v -260V±5%.

8.USB communication port.

9.Power supply fuse pipe: see Table 3

10.Power supply: Voltage 220V±5%, 50±5Hz
