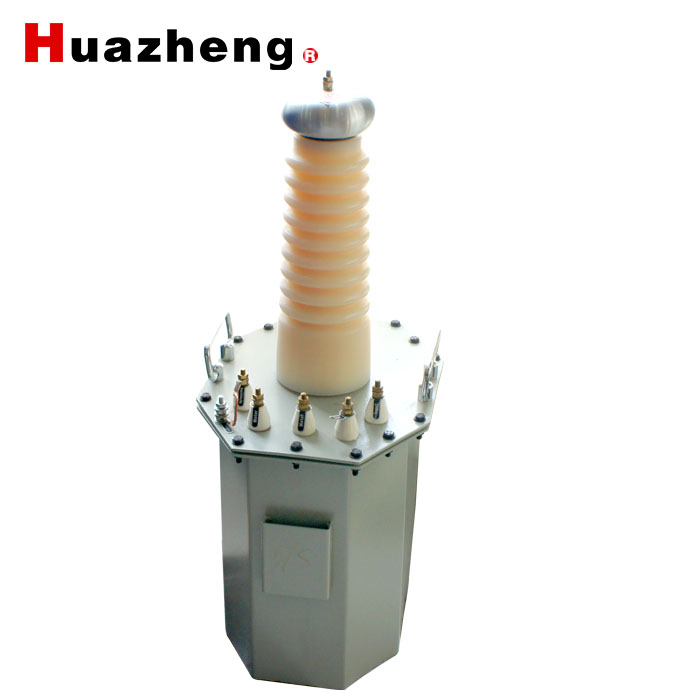

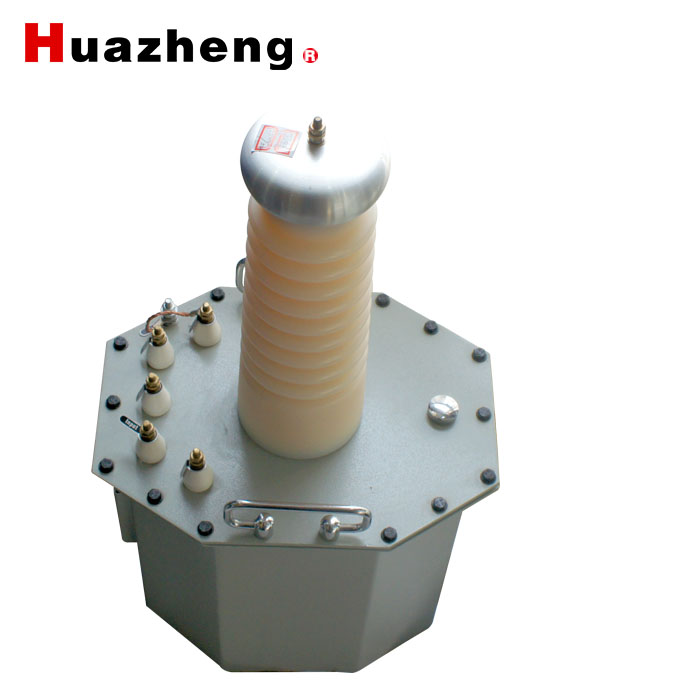

HZJ & HZJZ Oil Type High Voltage AC Testing Transformer

Technical Parameters

1．Technical parameters of HZJ series alternating current test transformers.

Model	Capacity（KVA）	High Frequency Voltage Output Voltage （KV）	High Frequency Voltage Output Current（mA)	Low Frequency Voltage input		Ratio	Tempera- ture(℃) raised/ 30 minute
Model	Capacity（KVA）	High Frequency Voltage Output Voltage （KV）	High Frequency Voltage Output Current（mA)	V	A	Ratio	Tempera- ture(℃) raised/ 30 minute
HZJ-1.5	1.5	50	30	200	7.5	500	10
HZJ -3	3	50	60	200	15	500	10
HZJ -5	5	50	100	200	25	500	10
HZJ -10	10	50	200	200/400	50/26	500	10
HZJ -20	20	50	400	400	53	500	10
HZJ -30	30	50	600	400	79	500	10
HZJ -40	40	50	800	400	105	500	10
HZJ -50	50	50	1000	400	132	500	10
HZJ -5	5	100	50	200	25	1000	10
HZJ -10	10	100	100	200/400	50/26	1000	10
HZJ -20	20	100	200	400	53	1000	10
HZJ -30	30	100	300	400	79	1000	10
HZJ-30	30	150	200	400	75	1500	10
HZJ -40	40	10	400	400	105	1000	10
HZJ -50	50	100	500	400	132	1000	10
HZJ-60	60	120	500	400	150	1200	10
HZJ -100	100	100	100	500	263	1000	10
HZJ -150	150	15	10	400	375	1000	10
HZJ -200	200	100	2000	500	400	1000	10
HZJ -250	250	100	2500	400	500	1000	10
HZJ-15	15	160	93	400	37.5	1600	10
HZJ -20	20	150	133	400	53	1500	10
HZJ -30	30	150	200	400	79	1500	10
HZJ -50	50	150	333	400	132	1500	10
HZJ -100	100	150	666	500	263	1500	10
HZJ -150	150	150	1000	500	300	1500	10
HZJ -200	200	150	1333	500	400	1500	10
HZJ -250	250	150	1666	400	500	1500	10
HZJ -30	30	200	150	400	79	2000	10
HZJ -30	30	160	187	400	37	1600	10
HZJ -50	50	200	250	400	132	2000	10
HZJ -100	100	200	500	400	263	2000	10
HZJ -150	150	200	750	500	300	2000	10
HZJ -200	200	200	1000	500	400	2000	10
HZJ -250	250	200	1250	500	500	2500	10
HZJ -30	30	250	120	400	79	2500	10
HZJ -50	50	250	200	400	132	2500	10
HZJ -100	100	250	400	400	263	2500	10
HZJ -150	150	250	600	500	300	2500	10
HZJ -200	200	250	800	500	400	2500	10
HZJ -250	250	250	1000	500	500	2500	10

Note: 100KVA and the above input voltage may enhance to 3000V or proposed by the users.

2. Technical parameters of HZJZ alternating and direct current test transformers.

Model	Capacity（KVA）	High Frequency Voltage Output （KV） AC DC		High Frequency Voltage Current （Ma） AC DC		Low pressure input		Ratio	Tempera- ture(℃) raised/ 30 minute
Model	Capacity（KVA）	High Frequency Voltage Output （KV） AC DC		High Frequency Voltage Current （Ma） AC DC		V	A	Ratio	Tempera- ture(℃) raised/ 30 minute
HZJZ -1.5	1.5	50	70	30	15	200	7.5	500	10
HZJZ-3	3	50	70	60	15	200	15	500	10
HZJZ -5	5	50	70	100	15	200/400	25	500	10
HZJZ-10	10	50	70	200	100	400	50/26	500	10
HZJZ -20	20	50	70	400	100	400	53	500	10
HZJ-20	20	200	280	100	100	400	50	2000	10
HZJZ-30	30	50	70	600	100	400	79	500	10
HZJZ -40	40	50	70	800	100	400	105	500	10
HZJZ-50	50	50	70	1000	100	400	132	500	10
HZJZ -5	5	100	140	100	50	200/400	25	1000	10
HZJZ -10	10	100	140	200	100	400	50/26	1000	10
HZJZ-20	20	100	140	300	100	400	53	1000	10
HZJZ -30	30	100	140	400	100	400	79	1000	10
HZJZ -40	40	100	140	600	100	400	105	1000	10
HZJZ -50	50	100	140	1000	100	400	132	1000	10
HZJ-150	150	150	210	1000	100	400	375	1500	10
