Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

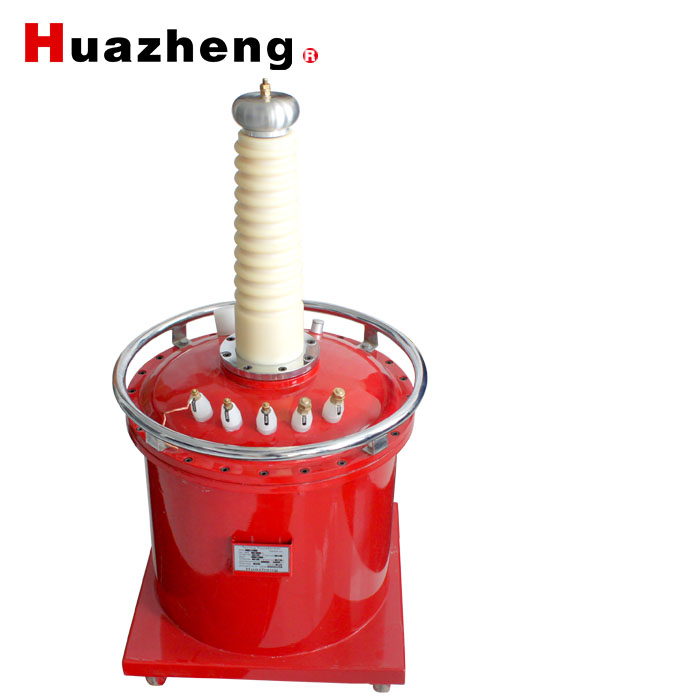

Structure

They make up of the high quality cold rolling silicon steel piece by HZQ alternating current test transformer, HZQ-JZ alternating and direct current amphibious light high voltage test transformer. The winding is the　concentric pagoda and multilayer cylindrical type, low-voltage　winding in inner, high-voltage winding in outside; Outer cover is portable which has characteristics, such as volume smallness, weight light, the shape prettiness and move convenience and so on.

Principle of Work

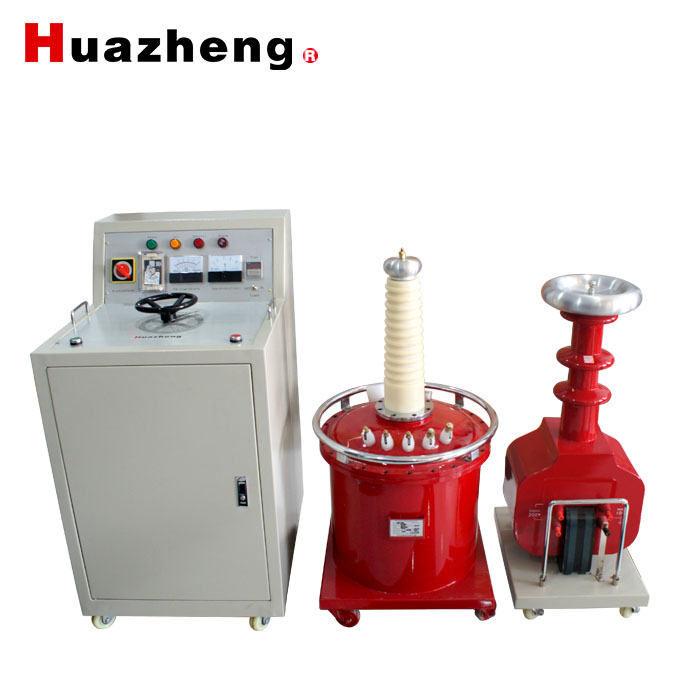

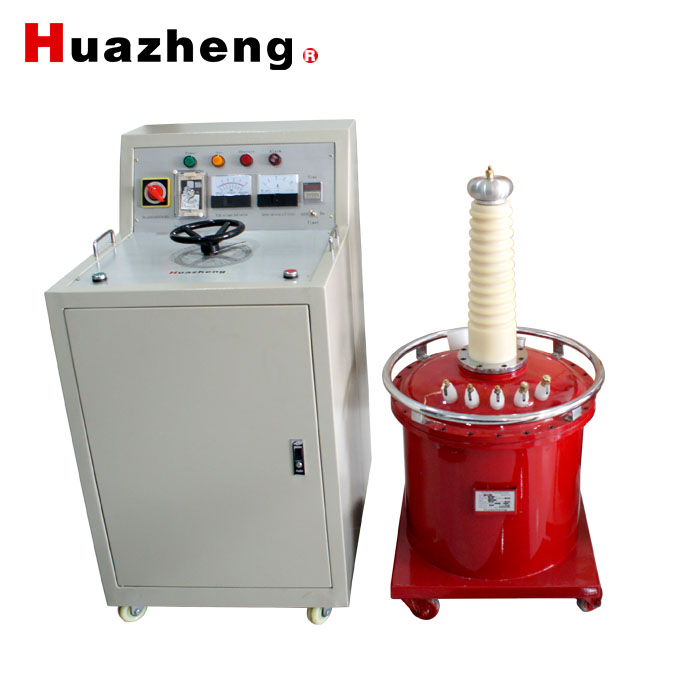

Connecting the control unit (it is the supplementary equipment of test transformer, detailed see the explaining book) with work frequency 230V (above 10KVA with 400V), adjusting 0-230V/400V voltage input to HZQ (HZQ-JZ) test transformer primary winding through autotransformer. According to the principle of electromagnetic influence, the secondary (high voltage) winding may gain the same multiple voltage value than the primary winding with the circle rated that is the high frequency voltage of work frequency. It can obtain the direct current high frequency voltage after commuted by high frequency voltage silicon stack and filtrated by capacitor, among whose amplitude value is the 2 times value of work frequency.

This series product divides into three kinds: the alternating current is named HZQ, the alternating and direct current is named as HZQ-JZ, meanwhile, may connecting HZQ, HZQ-JZ with 230V switch to form series excitation transformer.

Technical Parameters

Model	Capacity（KVA）	High Frequency Voltage Output Voltage （KV）		High Frequency Voltage Output Current（mA)		Low Frequency Voltage input		Ratio	Tempera- ture(℃) raised/ 30 minute
Model	Capacity（KVA）	AC	DC	AC	DC	V	A	Ratio	Tempera- ture(℃) raised/ 30 minute
HZQ-1.5	1.5	50	70	30	15	200	7.5	500	10
HZQ -3	3	50	70	60	15	200	15	500	10
HZQ -5	5	50	70	100	15	200	25	500	10
HZQ -10	10	50	70	200	100	200/400	50/26	500	10
HZQ -20	20	50	70	400	100	400	53	500	10
HZQ-30	30	50	70	600	100	400	79	500	10
HZQ -40	40	50	70	800	100	400	105	500	10
HZQ -50	50	50	70	1000	100	400	132	500	10
HZQ-5	5	100	140	50	50	200	25	1000	10
HZQ -10	10	100	140	100	100	200/400	50/26	1000	10
HZQ -15	15	100	140	150	100	400	37.5	1000	10
HZQ -20	20	100	140	200	100	400	53	1000	10
HZQ -30	30	100	140	300	100	400	79	1000	10
HZQ-40	40	100	140	400	100	400	105	1000	10
HZQ-50	50	100	140	500	100	400	132	1000	10
HZQ -10	10	150	210	67	100	200	50	1500	10
HZQ -10	10	200		50	100	200/400	50/25	2000	10
HZQ -15	15	150	210	100	100	400	37.5	1500	10
HZQ -20	20	150	210	133	100	400	50	1500	10
HZQ-20	20	200	280	100	50	400	50	2000	10
HZQ -30	30	150	210	200	100	400	75	1500	10
HZQ -50	50	150	210	333	100	400	125	1500	10
HZQ-50	50	250		200		400	125	2500	10
HZQ-150	150	150	210	1000	100	400	375	1500	10
