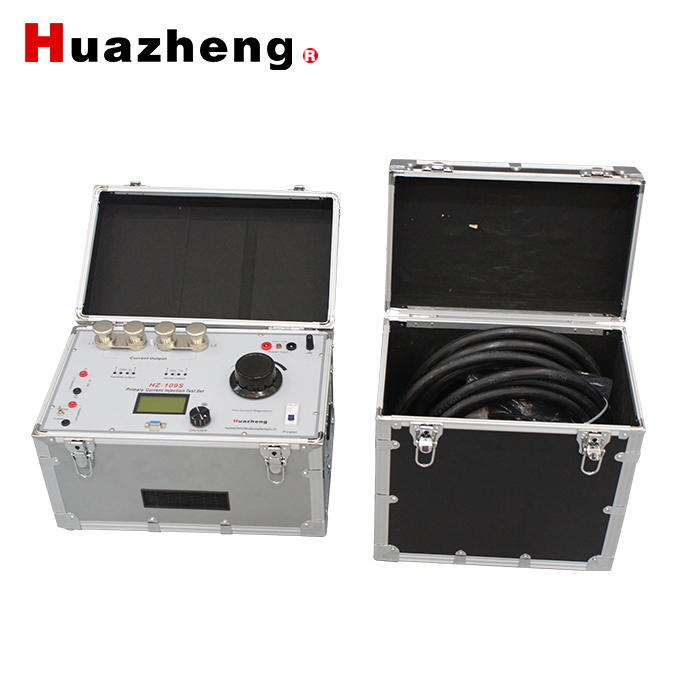

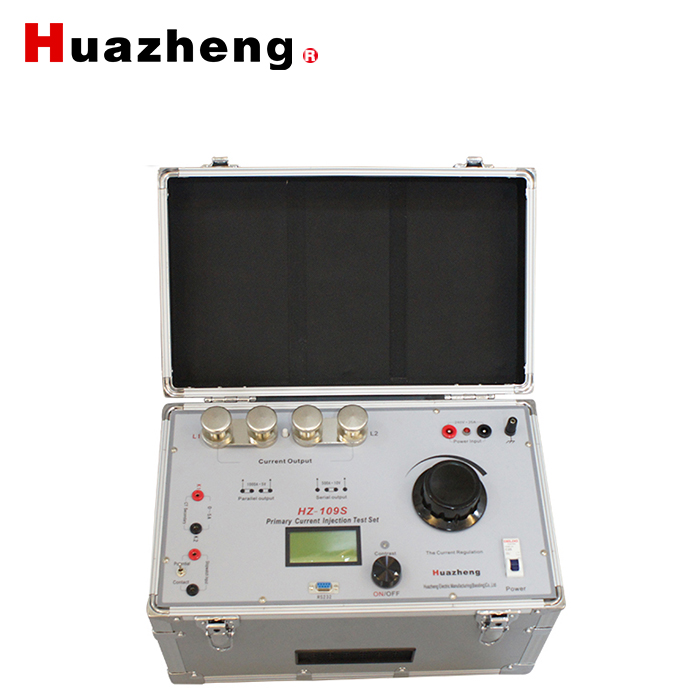

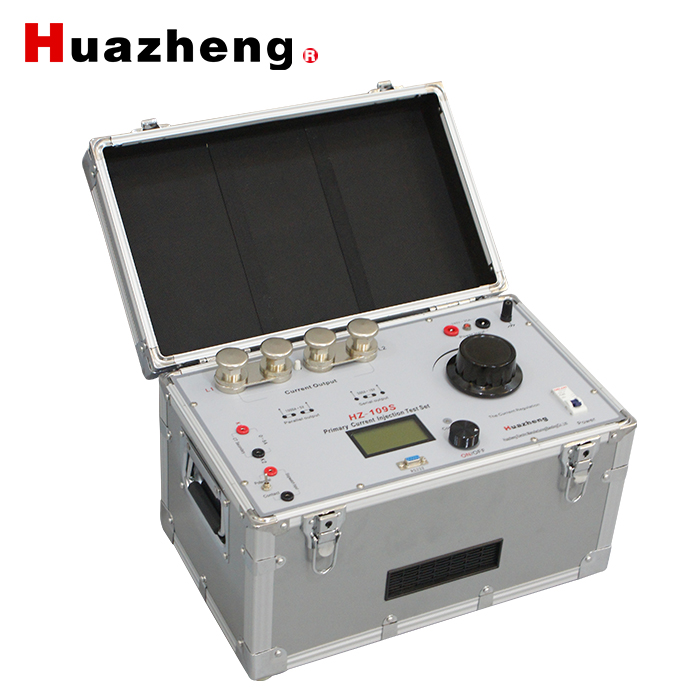

Huazheng Electric HZ-109S 1000A Primary Injection Test Set

I. Overview

Adopted technology of ARM chip controlling output and toroidal transformer with high-capacity and equipped with LCD display meter, the HZ-109S Primary Current Injection Tester could simultaneously display primary current, secondary current, turn ratio and the actuation time of stopwatch connection position (electric potential). The product possesses the characteristics of nice appearance, large output capacity, small size, light weight and so on with external aluminum alloy case and PC panel. It is mainly suited for CT turn ratio and contact resistance tests of power system and other occasions needed high current test.

II. The Main Performance Index

2.1 Input Power Supply: AC：220V·25A,50Hz.

2.2 Output Current: AC：1000A·5V or 500A·10V.

2.3 LCD Screen Digital Display: Simultaneous display of primary current and secondary current as well as the turn ratio;

The Range of Primary Current: 0~1100A, Resolution：0.1A;

The Range of Secondary Current: 0～6A; Resolution：0.001A.

Stopwatch: 0.0001～999.99S precision ±5 significant figures.

2.4 Precision: TRUE RMS ±0.5%.

2.5 Duplicate Protection (electronic overload protection and software protection).

2.6 Usage Environment: Temperature -10~40℃,

Relative humidity <80%.

2.7 Volume; 430×260×260mm³.

2.8 Weight: 28kg.

Output Time Ratio

Output Time Ratio of High Current Tester
Rated Current	Time(s)
110%	10S
100%	60S
90%	90S
80%	120S
70%	240S
60%	600S
50%	1800S
40%	3600S
＜30%	Long Time
The above is the first output time of the startup. When the output reaches the above time, the instrument must cool down for more than 10 minutes before it can continue to output current.
