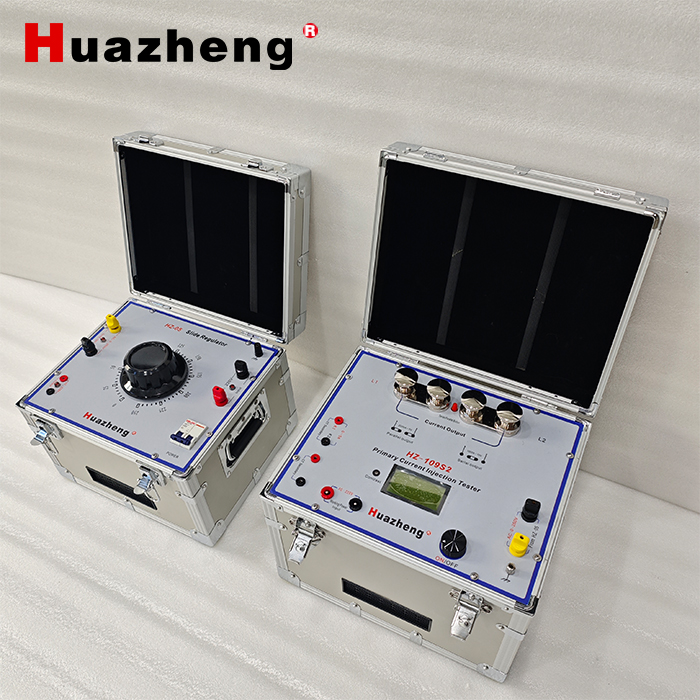

HZ-109S2 2000A Primary Current Injection Tester
HZ-109S2 2000A Primary Current Injection Tester
HZ-109S2 2000A Primary Current Injection Tester
HZ-109S2 2000A Primary Current Injection Tester
HZ-109S2 2000A Primary Current Injection Tester
HZ-109S2 2000A Primary Current Injection Tester
HZ-109S2 2000A Primary Current Injection Tester
HZ-109S2 2000A Primary Current Injection Tester
HZ-109S2 2000A Primary Current Injection Tester

Primary Current Injection Tester

2000A Primary Current Injection Tester

Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

I. Overview

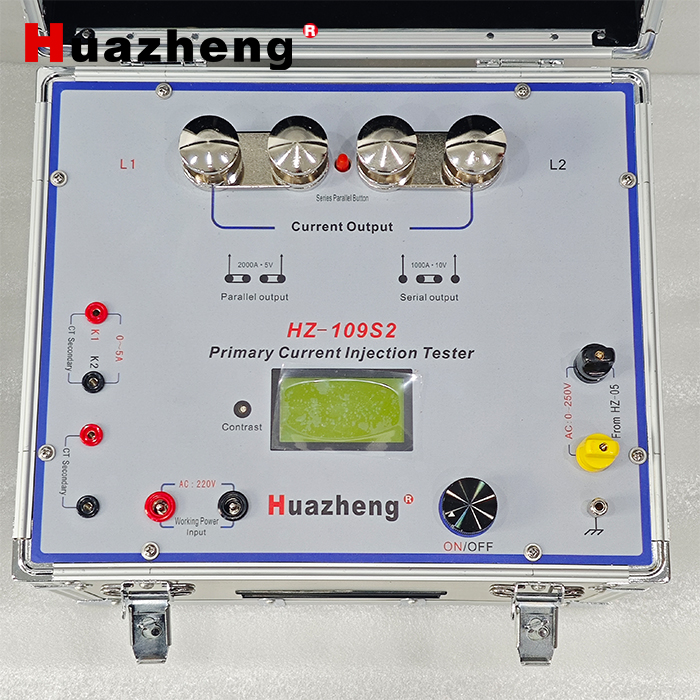

Adopted technology of ARM chip controlling output and toroidal transformer with high-capacity and equipped with LCD display meter, the HZ-109S2 Primary Current Injection Tester could simultaneously display primary current, secondary current and turn ratio. The product possesses the characteristics of nice appearance, large output capacity, small size, light weight and so on with external aluminum alloy case and PC panel. It is mainly suited for CT turn ratio and contact resistance tests of power system and other occasions needed high current test.

II. The Main Performance Index

2.1 Input Power Supply: AC:220V·50A,50Hz.

2.2 Output Current: AC:2000A·5V or 1000A·10V.

2.3 LCD digital display showing primary current, secondary current, transformation ratio, time (stopwatch), and phase simultaneously;

The Range of Primary Current: 0~2200A,    Resolution:0.1A;

The Range of Secondary Current: 0~6A;    Resolution:0.001A.
Stopwatch: 0.0001~999.99S, accuracy ±5 digits after the decimal point;
Phase: 0°~360°

2.4 Accuracy: True RMS ±(0.3% of reading + 0.2% of full scale).

2.5 Usage Environment: Temperature -10~40℃,

Relative humidity <80%.
