Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

I. Summarize

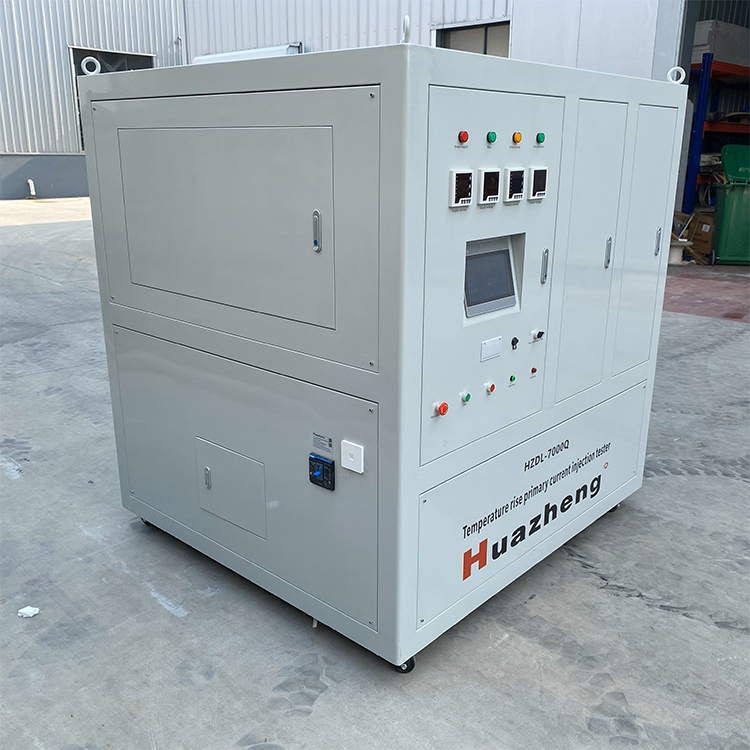

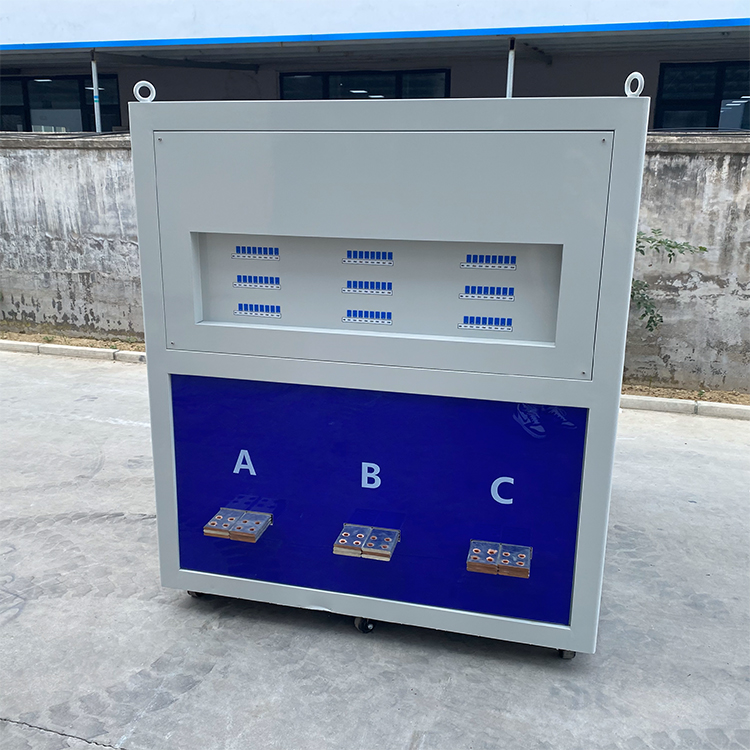

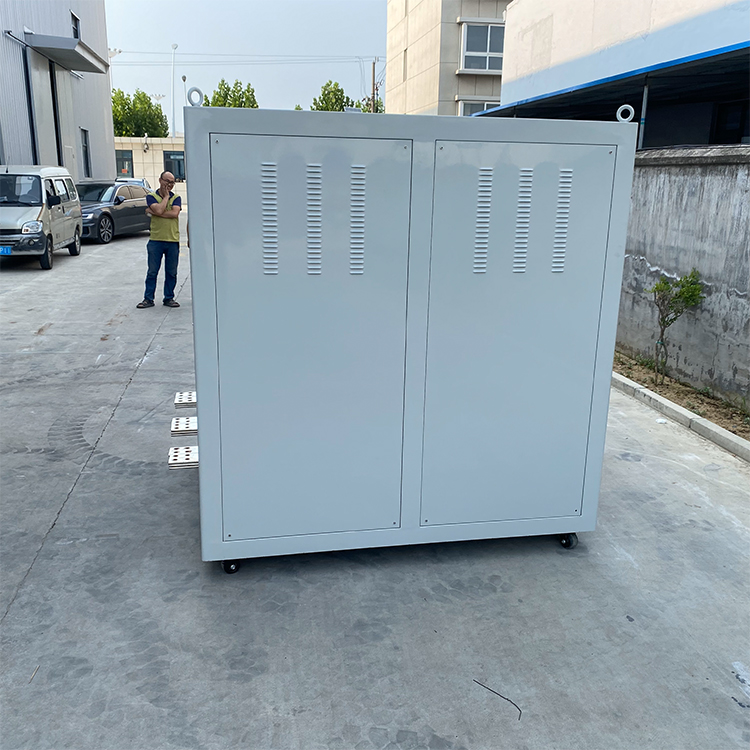

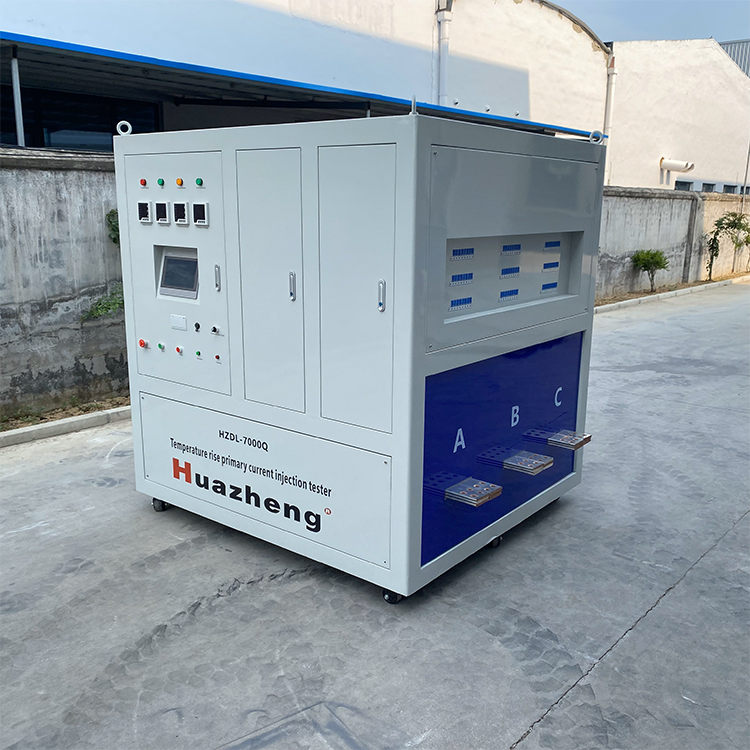

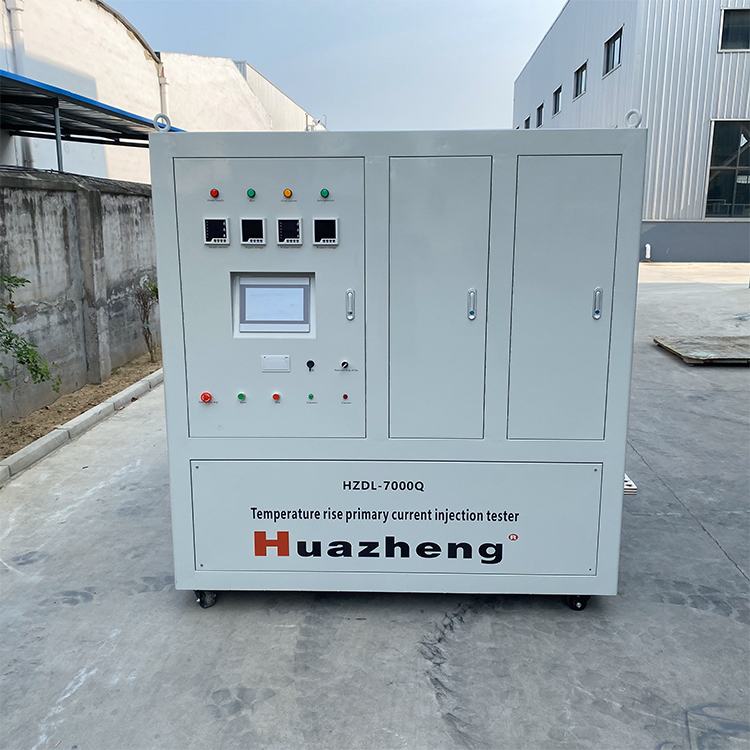

The HZDL-7000Q temperature rise test system equipment is controlled by a special system control board, and the Vinlon series touch screen is used as the man-machine interface to realize the automatic high-current detection equipment. By installing different modules, this series of equipment can realize different high current output, temperature measurement, and other experiments. Manual selection and external computer can be achieved through the man-machine interface. Automatic operation, view temperature data and other operations and simple data processing. There are data export and external printer functions to export or print data for further processing.

II. The Main Features

● Current, time, status information and prompt information and other data large screen LCD display, clear reading, intuitive;

● All English interface, easy to operate, can be adapted to a variety of applications；

● Touch screen conventional buttons can be operated, the operation is intuitive, fast, easy to use.

● Full digital calibration mode, abandon the old potentiometer adjustment, field use is very convenient, precision is easy to control;

● Status reminder function, guided operation, even in the absence of instructions can be skillfully controlled;

● Pause function, automatic control, this function can be achieved at any point to achieve the current rise/fall process pause, pause time can be flexibly grasped by the test personnel, convenient observation of the state of the test;

● The automatic timing function stops the timing when the experiment is suspended and starts the timing during the pause time. The output time restarts when the test continues

● Manual timing function, manual control, the timer can be manually started.

● Manual control mode, this mode is similar to the traditional electric lift/drop mode, the increase/decrease of current is controlled by the button, the device automatically determines the upper/lower limit, has the function of overcurrent protection, the whole test process is manually controlled and operated on demand;

● Manual recovery with stop/emergency button；

● Intelligent control of current rise and fall speed, when the current is close to the target current, the rising speed will automatically slow down;

● Data export function, the device data can be stored to the computer for further processing through the U disk. (Some models)

● When there is a fault such as overcurrent, the protection is immediate, accurate and reliable;

● Using the combination of hard and software anti-jamming technology, stable performance, strong anti-jamming ability, there will be no crash, black screen, flower screen and other abnormal phenomena in the test。
