1、Introduction

Cable Route tracer is specially-designed for detecting the underground cable layout position and underground depth in a certain range.

Cable route detector consists of signal transmitter and receiver (Cable fault pinpoint detector), both of which finish the detection. By united operation the Cable route detector could exactly pinpoint the cable route in the probable range of cable burial.

2 、Main consist of cable route tracer

Cable route tracer mainly consists of route signal transmitter and receiver.

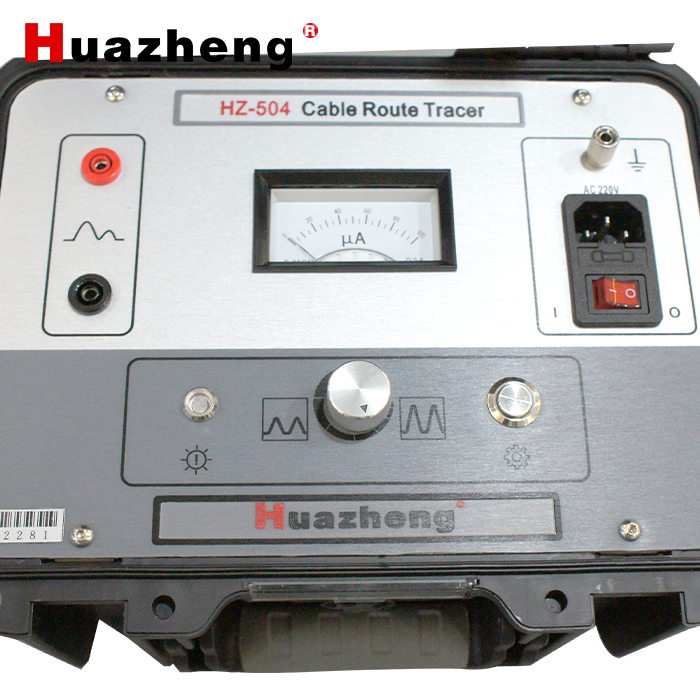

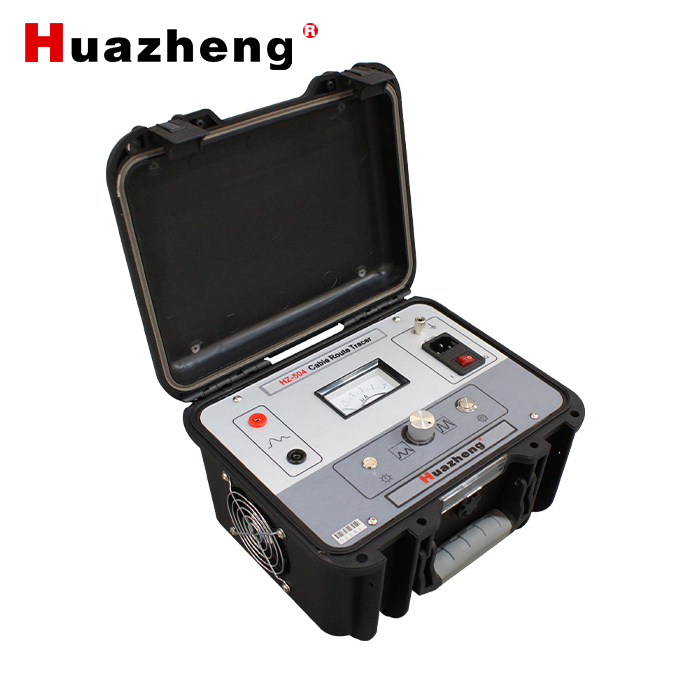

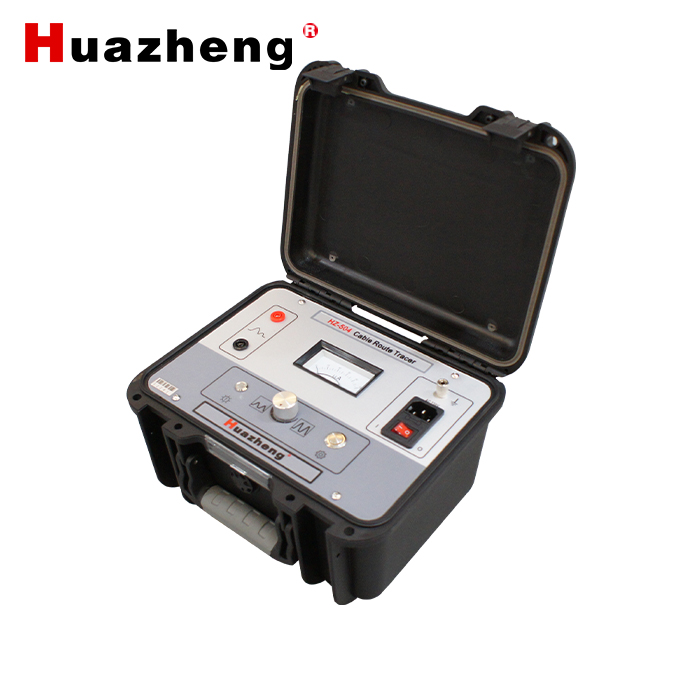

2.1  Cable Route signal transmitter

Cable route tracer is the big power route signal transmitter required in detecting the underground cable route.

2.1.1 Main Technical Index Parameters.

a) big power output, anti-vibration, strong anti-interference ability, stable and reliable;

b) With reliable over current, open circuit and short circuit protection function;

c)Output Frequency: Audio Frequency.

d) Output signal：intermittent，0～50Vpp

e) Working power supply：220V（1±10%） 50Hz（1±5%）；

f) Output power：100W；

g) Output current：0～2A；
