Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

Overview

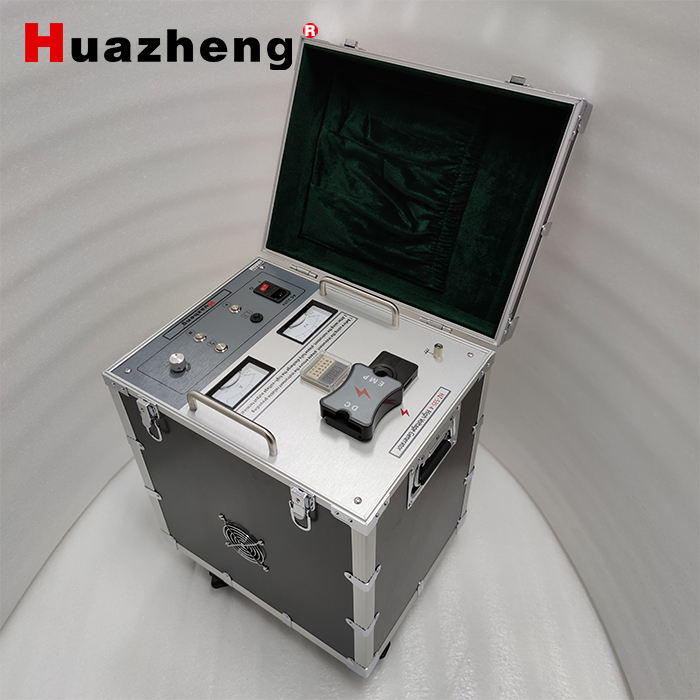

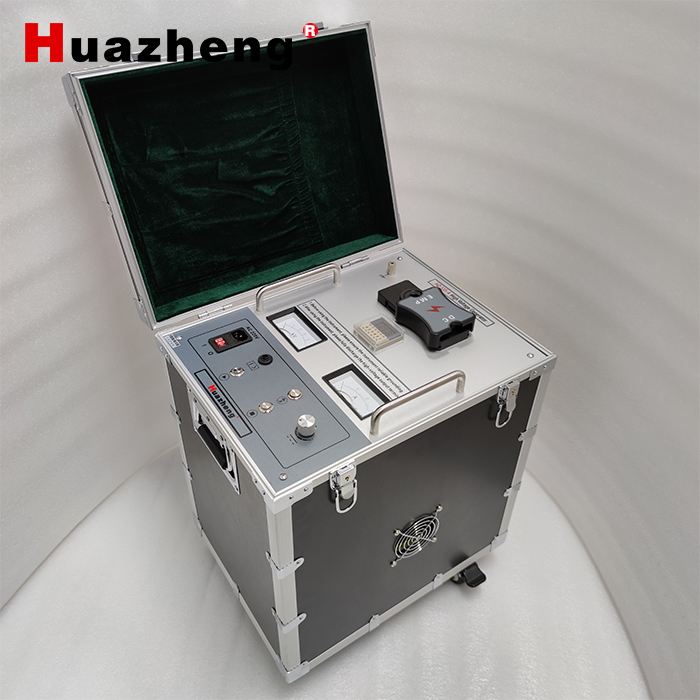

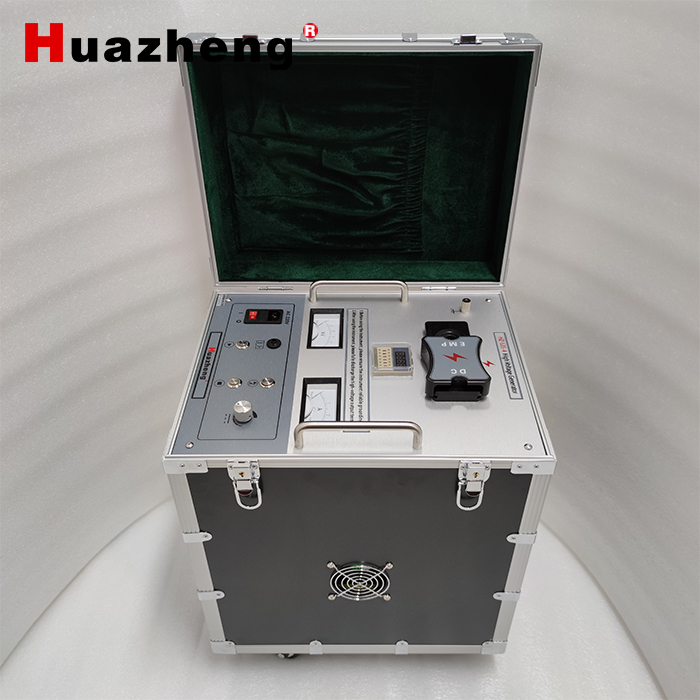

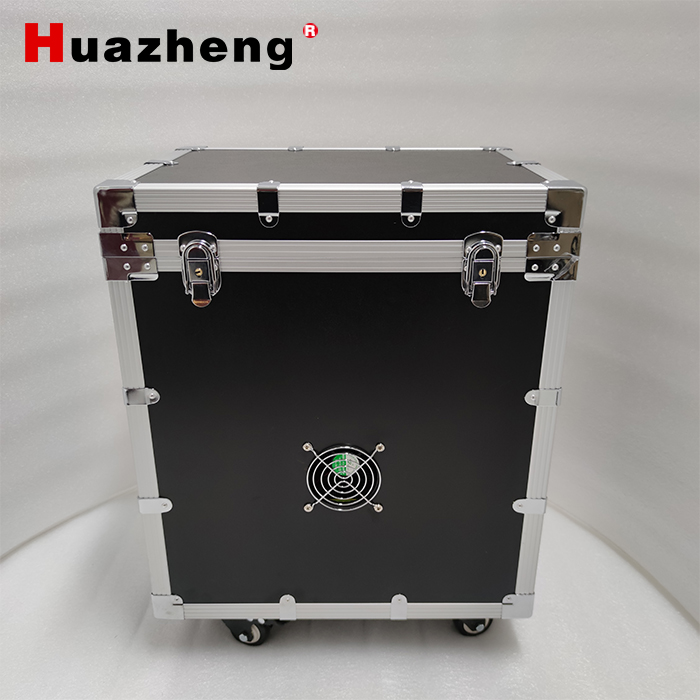

The high voltage pulse generator fully meets DL/T846-2016 "General Technical Conditions for High Voltage Test Equipment" and DL/T474-2017 "Guidelines for the Implementation of Field Insulation Test". It is mainly used for shock discharge during cable fault test of 35kV and below voltage level. It can also be used for DC voltage withstand test of other electrical equipment.

The device integrates DC high voltage source, energy storage capacitor and discharge ball gap. The device completely replaces the traditional test transformer, operating box and pulse energy storage capacitor weighing hundreds of kilograms (a set of 5kVA transformer is more than 60 kilograms, the control box is more than 30 kilograms, and the pulse energy storage capacitor is more than 20 kilograms).

The power supply adopts high-precision, high-stability special high-voltage electronic components and high-frequency high-voltage technology, which makes the whole machine simple structure and ultra-light weight. The pulse generator adopts humanized design operation mode, which is safe and reliable. Really do not break the impact effect, high voltage to the ground short circuit can also work normally. At present, it is the lightest and most humanized portable DC impulse high voltage equipment. It is an ideal product for power cable fault detection.

Product Feature

★ With over current, over voltage, overheating automatic protection function;

★ With DC voltage resistance, impact discharge function;

★ High voltage pulse output is uniform and controllable;

★ Strong short-circuit protection function, can make the high-voltage output directly to the ground short-circuit work;

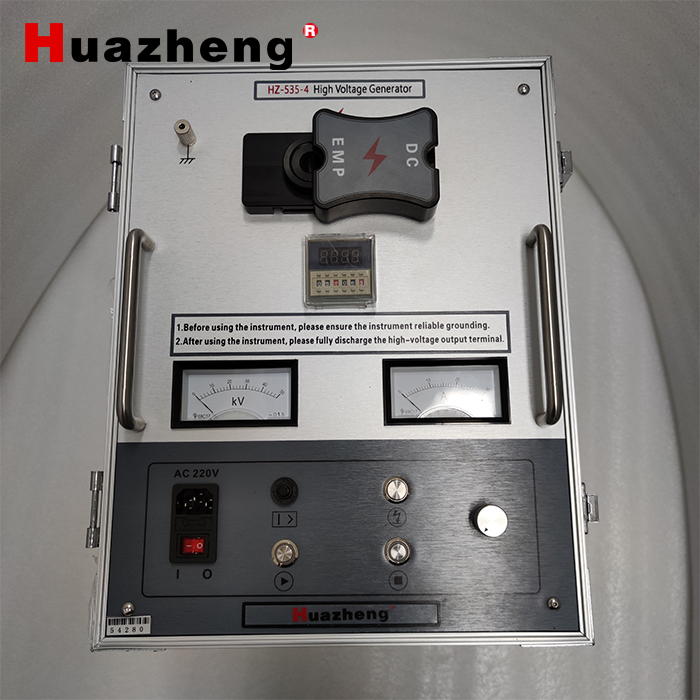

★ With current, voltage double 1.5 level pointer table display, intuitive and clear, fault point is fully discharged at a glance, real-time reaction discharge process;

★ High voltage side voltage measurement, real-time accurate;

★ with zero start protection more safe and reliable;

★ Unique high voltage measurement design, in the stopped state, the voltmeter can indicate the capacitance voltage value in real time, so that the operator knows the high voltage;

★ Discharge time can be arbitrarily set within the appropriate interval.
