Dielectric Oil Purifier

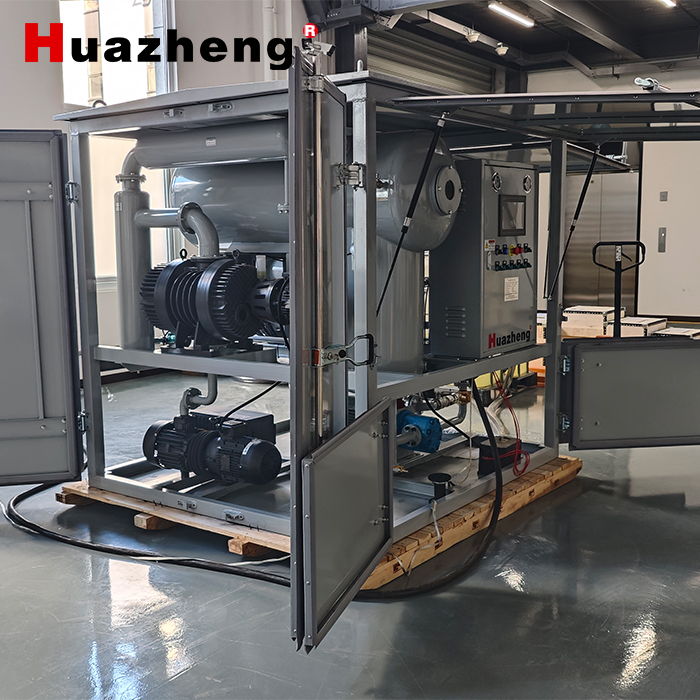

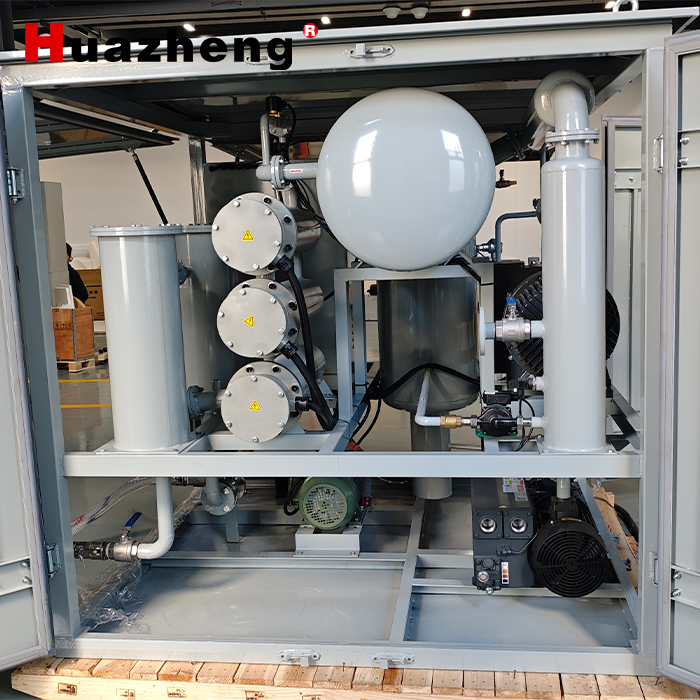

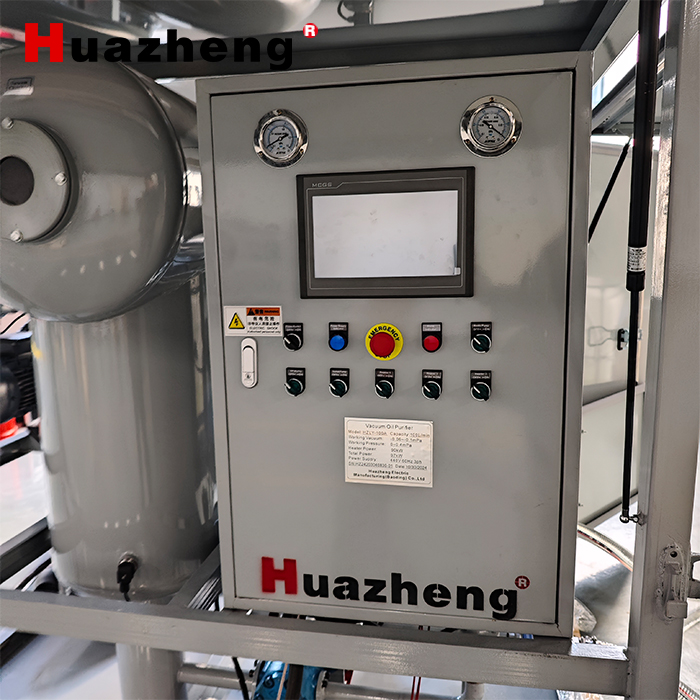

Huazheng Electric HZLY-100A 6000L/H High Vacuum Transformer Oil Purifier
Its main business is the production, manufacture and sales of electrical equipment and testing instruments.
Parameter
Model: HZLY-100A
Nominal flow: 6000L/h
Net oil capacity: 100L/min
Pumping rate: 540M³/h
Working pressure: ≤0.4Mpa
Working oil temperature:40～70℃
Working power supply: 50Hz380V three-phase three-wire
Heating power: 60Kw (Separate control by two groups)
Total power: 67kw
Operating noise: ≤75dB(A)
Inlet/outlet pipe diameter: 45/45
Dimensions: 165×160×170cm
Equipment weight: 870Kg
NO. | Name | Qty |
1 | Oil pump | 1 |
2 | Oil pump motor | 1 |
3 | Vacuum pump | 1 |
4 | Toots pump | 1 |
5 | Coarse filter | 1 |
6 | Primary filter | 1 |
7 | Second filter | 1 |
8 | Heater | 6 |
9 | Ball valve | 1 |
10 | Check valve | 2 |
11 | Electric | 1 |
12 | Liquid level sensor | 5 |
13 | PLC | 1 |
