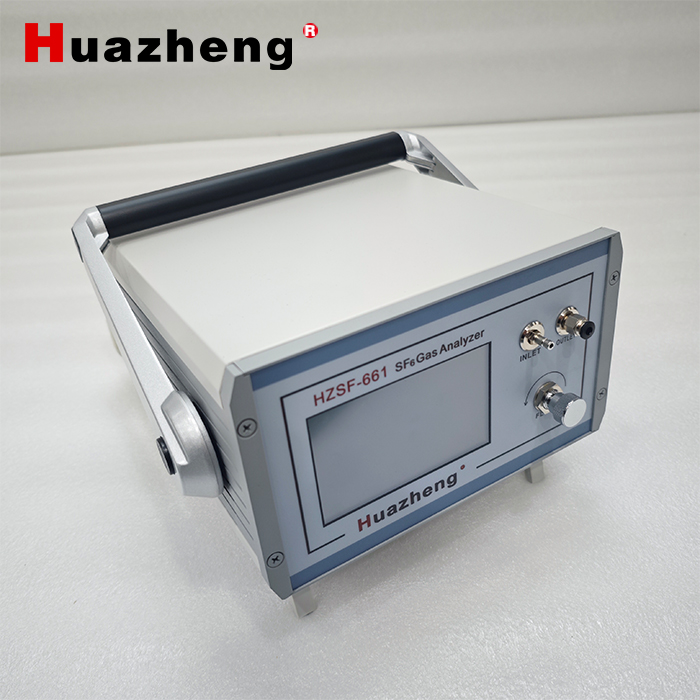

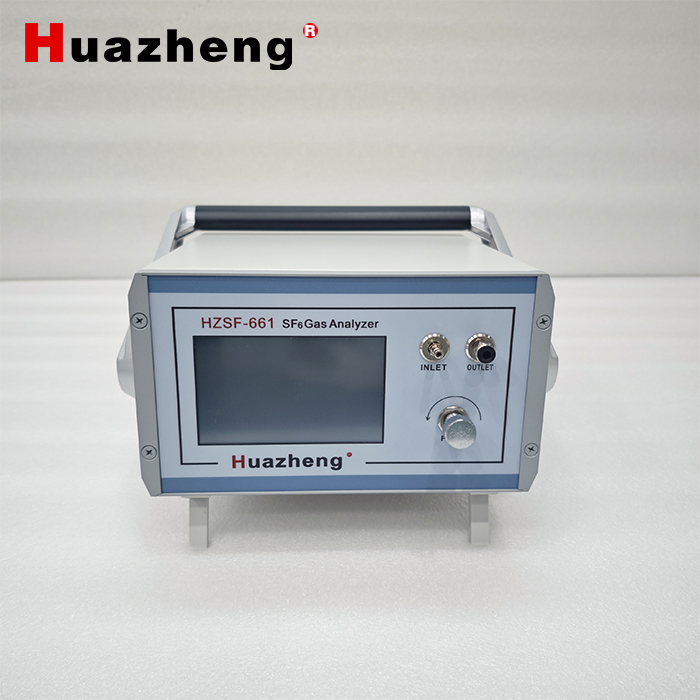

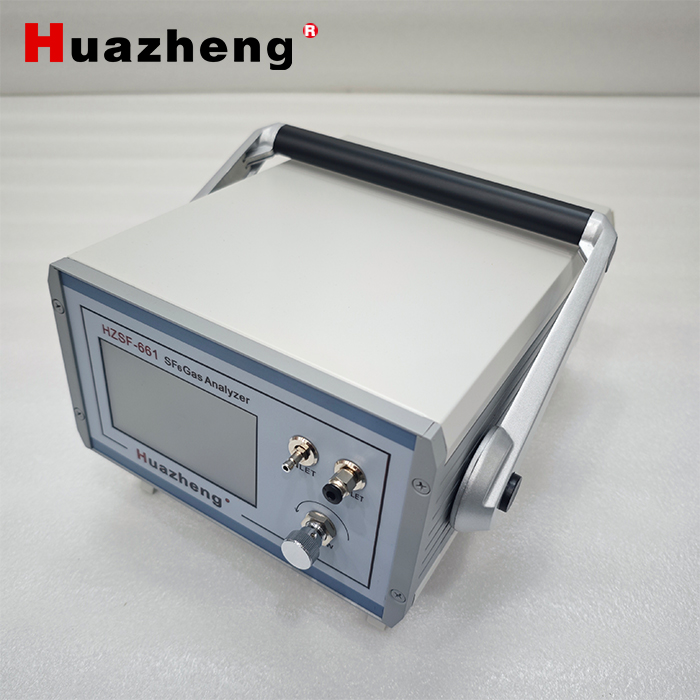

SF6 Gas Tester
SF6 Gas Comprehensive Analyzer
Its main business is the production, manufacture and sales of electrical equipment and testing instruments.
I. Summary
The SF6 comprehensive tester adopts imported sensors, which integrates the measurement of SO2, H2S, Co, HF,moisture content and SF6 purity. It integrates the functions of multiple instruments into one instrument, greatly saving the gas in the equipment. This instrument has the characteristics of high accuracy and stable performance.
The instrument adopts color LCD touch screen, windows operation interface, real-time display of various parameters, full intelligent operation, massive information storage, built-in rechargeable battery, AC and DC dual-use.
II. Main Features
humidity (dew point), purity and decomposition products (SO2, H2S ,CO and HF) can be measured together.
fully imported precision sensor, automatic zero calibration for dew point measurement, anti oil stain and anti drift.
Electronic flow display.
instrument self diagnosis function and intelligent power display.
support data communication.
graphic menu.
wide measurement range, high accuracy and rapid response.
small size, intelligent and complete functions.
it has the functions of fast data storage, query and printing.
Open calibration: this instrument has the calibration function, which can be completed only by operating on the instrument
AC and DC dual-use, built-in rechargeable lithium battery, which can work continuously for several hours.
the probe is not affected in dew condensation, special pollution, oil and gas and most chemical environments.
the dew point | Measuring range and accuracy | Range: - 80 ℃ ~ + 20 ℃ accuracy: ≤ 2 ℃ |
resolving power | Dew point: 0.1 ℃ or 1ppm | |
response time | 63%[90%] +20~-20℃ Td 5s[45s] -20~-60℃ Td 10s[240s] | |
SF6 purity | Measurement range and accuracy | Range:0~100% accuracy:±0.2%(g/g) |
response time | 90%, 30s | |
SO2 | measuring range | 0~200ppm |
resolving power | 0.1ppm | |
H2S | measuring range | 0~200ppm |
resolving power | 0.1ppm | |
CO
| measuring range | 0~2000ppm |
resolving power | 1ppm | |
HF | measuring range | 0~10ppm |
resolving power | 0.01ppm |
sensor | |
humidity sensor | Polymer film type, measuring range: - 80 ℃ ~ + 20 ℃ |
Purity sensor | Imported laser infrared sensor |
Decomposition product sensor | UK alpha high sensitivity decomposition product sensor |
flow sensor | Honeywell electronic mass flowmeter, easy to use |
Temperature sensor | Imported digital temperature sensor |

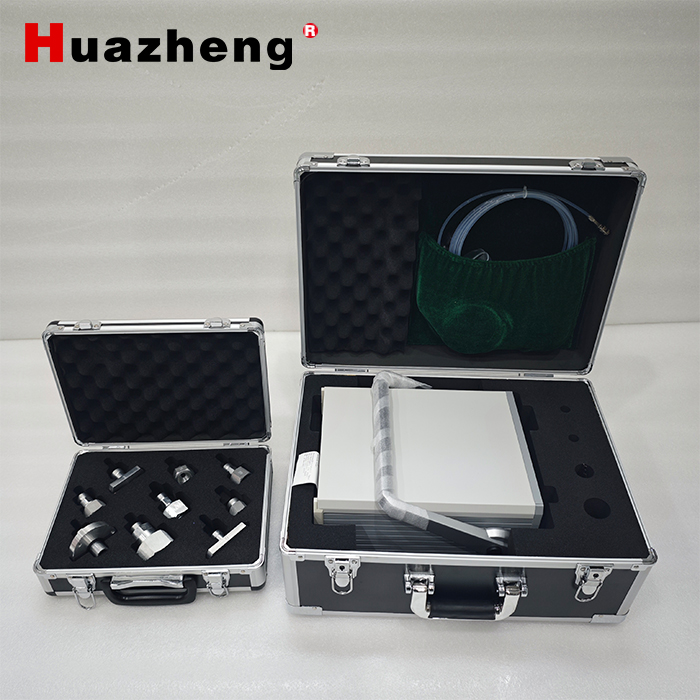

Other accessories | |
Battery | Lithium battery, capacity 8000mah, overcharge protection |
Flow regulating valve | Needle regulating valve |
regulator valve | Stable measurement pressure, prevent pressure sudden change from damaging
|
Air inlet interface | French self sealing quick plug valve |
Air inlet pipe | Standard Teflon tube |
Air outlet pipe | Standard Pu pipe |
Cable | One power cord |
Mating adapter | One |
