Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

1、An overview of the

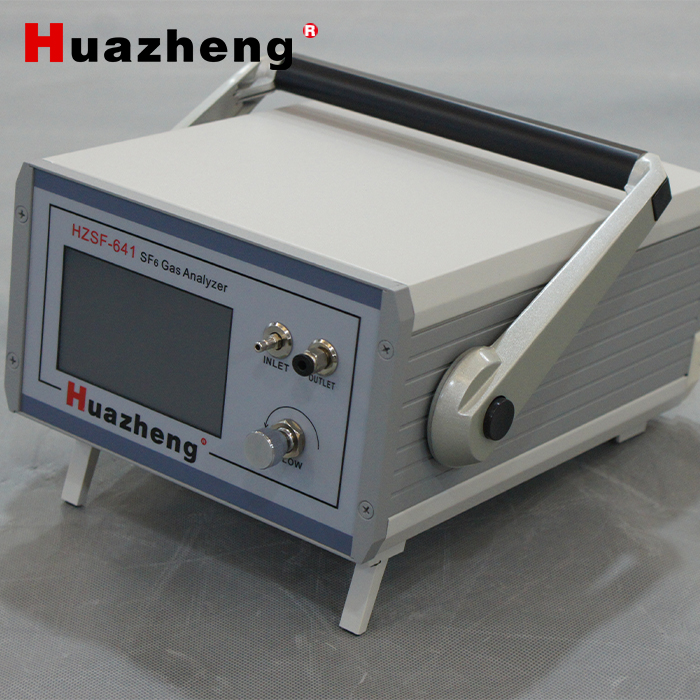

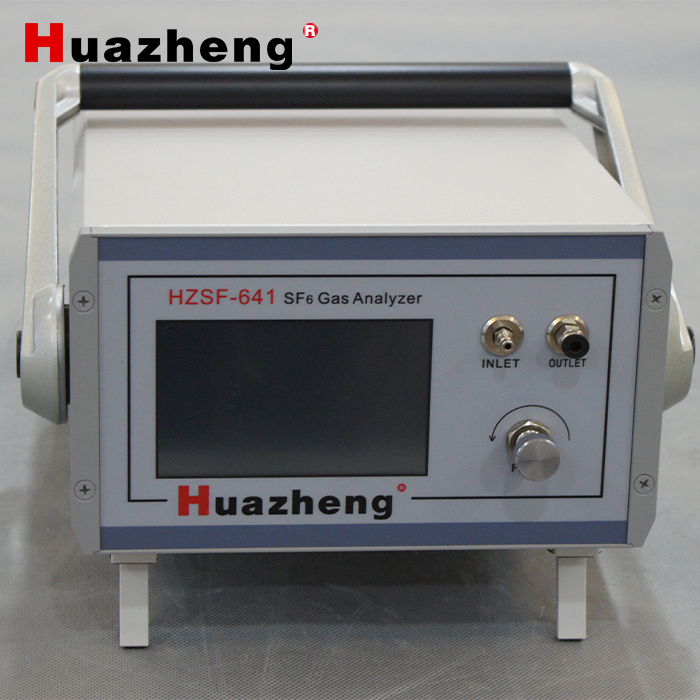

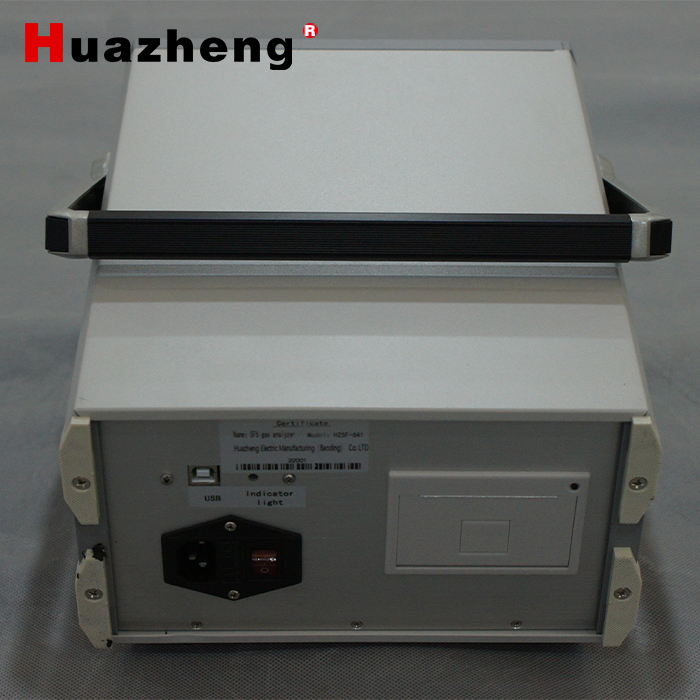

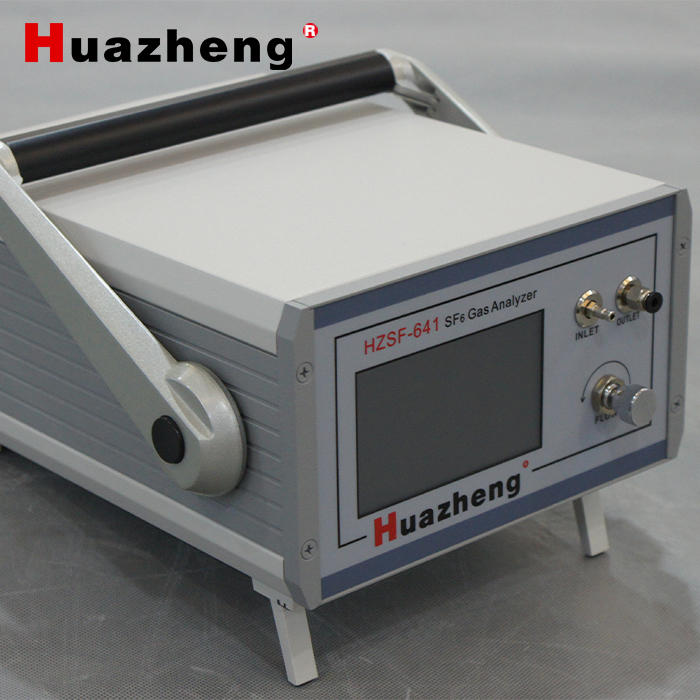

SF6 Gas Analyzer adopts imported sensors, set SO2, H2S, moisture content and SF6 purity measurement in one, the original multiple instruments to achieve the function of a centralized instrument, greatly saving the gas in the equipment. The instrument has the characteristics of high precision and stable performance.

The instrument adopts color LCD touch screen, Windows operating interface, real-time display of various parameters, fully intelligent operation, massive information storage, built-in rechargeable battery, AC and DC dual use.

2、The main features

Measures humidity (dew point), purity, decomposition (SO2, H2S) into a single device.

Fully imported precision sensor, dew point measurement automatic zero calibration, anti-oil pollution, anti-drift.

Electronic flow display.

Instrument self-diagnosis function, intelligent electric quantity display.

Supports data communication.

Graphic menu.

Measuring range is wide, precision is high and response is rapid.

Is small, intelligent and fully functional.

Has the function of fast data storage, query and print.

Open calibration: The instrument has a calibration function and only needs to be operated on the instrument to complete the calibration.

AC/DC, with a rechargeable lithium battery built in, capable of operating continuously for several hours.

Probe is not affected in condensation, specific pollution, oil and gas and most chemical environments.

3、Technical indicators

SF6 dew point	Measuring range and accuracy	Range: -80℃ ~ +20℃ Accuracy: ±1℃
	The resolution of the	Dew point 0.1℃ or 1ppm
	The response time	63％[90％] +20～-20℃ Td 5s[45s] -20～-60℃ Td 10s[240s]
SF6 purity	Measuring range and accuracy	Range: 0 ~ 100% Accuracy: 0.5%
SF6 purity	The response time	90%， 30s
SO2	Measuring range	0～100ppm
SO2	precision	±0.5%
H2S	Measuring range	0～100ppm
H2S	precision	±0.5%

The sensor
Humidity sensor	Polymer film type, range: -80℃ ~ +20℃
Purity sensor	Imported laser infrared sensor
Decomposition product sensor	British Alpha high sensitivity decomposition product sensor
Flow sensor	Honeywell electronic mass flowmeter, easy to use
Temperature sensor	Imported digital temperature sensor

Other accessories
The battery	Lithium battery, capacity 8000mAh, overcharge protection
Flow regulating valve	Needle type control valve
Voltage regulator valve	Stable measurement pressure, prevent pressure mutation damage to the sensor
Inlet interface	French self - styled quick insertion valve
Air intake pipe	Standard teflon tube
Gas pipeline	The standard PU tube
Cable	One power cable
Matching adapter	Lv joint one case
