Technical Features And Parameters

1、Technical features

 Portable design：lighter and more convenient to carry and use

 Fast measurement：measure immediately after the instrument calibration, and the humidity value can be quickly obtained

 Short measurement time and gas saving：the gas consumption during measurement is only about 2L (101.2kpa)

 Data storage：mass storage, up to 100 groups of test data can be stored

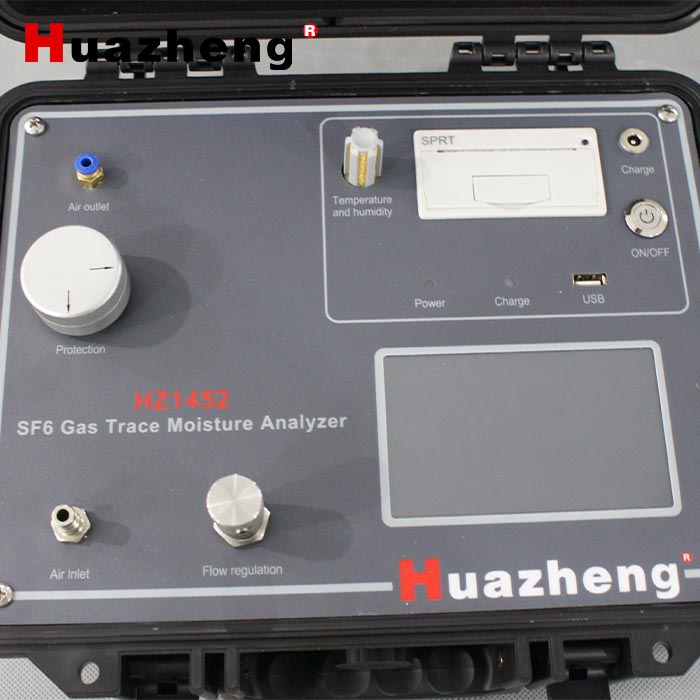

 Comprehensive display items：the LCD displays dew point value, current temperature micro water value, 20 ℃ micro water value, ambient temperature, ambient humidity, time and date, battery power, etc

 The humidity value can be automatically converted to the standard value at 20 ℃

 Curve tracking：real-time data curve tracking, dew point change trend is clear and intuitive

 USB interface：historical data can be exported

 Built in power supply：built in 6800mAh rechargeable lithium battery, sufficient at one time and can work continuously for 8 hours

2、Technical parameter

1) Measuring range：

Dew point：-80℃～+20℃

Micro water content：0～19999ppm

2) Measurement accuracy：

±2℃(-60℃~-50℃)

±1℃(-49℃~+20℃)(Scope of work)

4) Resolution ratio：

Dew point：0.1℃

Micro water content：1ppm

5) Measuring time：≤3 Minutes/point

6) Sampling flow：0.6～1.0L/min

7) Display mode：Color touch screen display, full Chinese interface, with              backlight

8) Power supply：lithium battery can work continuously for 8 hours with overcharge protection

9) Inspection method: self calibration function after startup

10) Working temperature：－40℃～＋80℃
