Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

I. Use And Scope Of Application

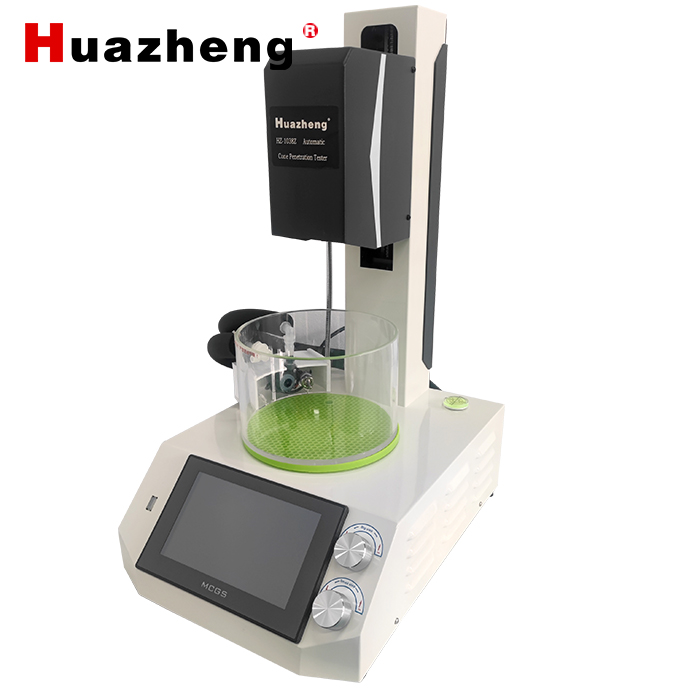

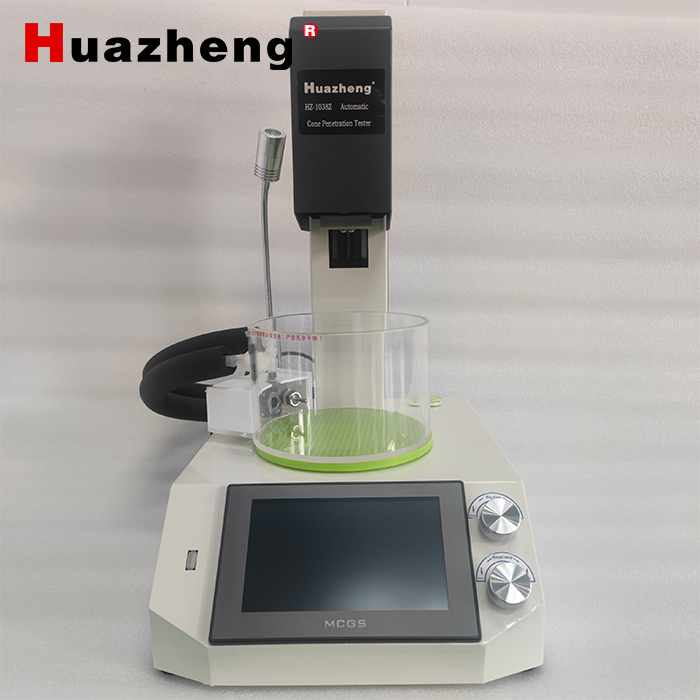

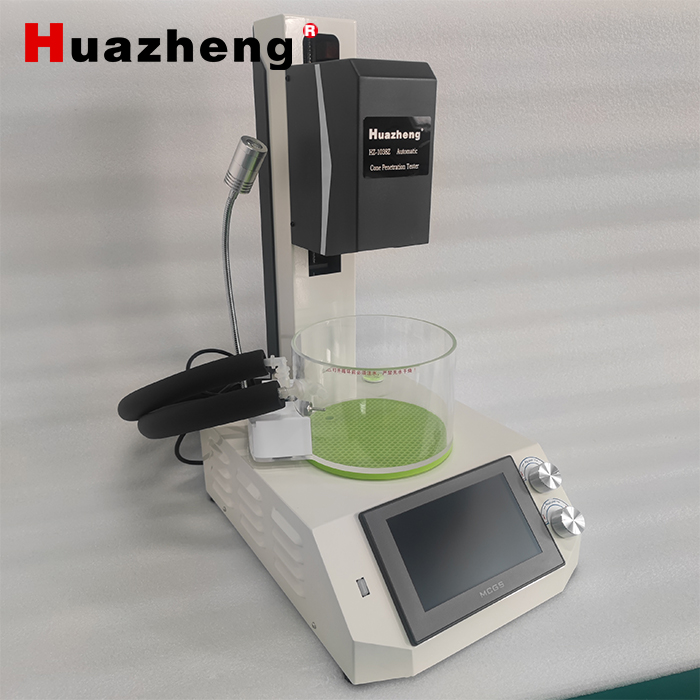

intelligent cone penetration meter is an innovative patented product with independent knowledge, which is designed and manufactured in accordance with the technical requirements and relevant regulations of the People's Republic of China standard GB/T 269-91 "Cone penetration test method of grease and petroleum grease" and referring to the international standard ISO2137 "Cone penetration test method of grease and petroleum".

Cone penetration is an index to measure the consistency and hardness of grease, which refers to the depth of cone falling into the sample under the specified load, time and temperature. Its unit is indicated in 0.1mm. The larger the cone penetration value, the softer the grease, and vice versa, the harder it is.

This instrument is mainly applicable to the determination of the consistency of lubricating grease and petroleum jelly, and it also applies to the determination of the consistency of oil-containing waxes without perspiration and degreasing; this is also in line with the testing performance stipulated in the standard of GB1790-2003 "Pharmaceutical Vaseline", and it is widely used to measure the softness and hardness of the lubricating grease, vaseline, and pharmaceutical ointment products or other semi-solid substances. So it is of great importance in the process of designing, controlling the quality, and identifying the characteristics of the products. It is widely used in medicine, electronics, food and other fields.

II. Main Technical Indicators And Parameters

No.	Technical parameters	Technical indicators
1	Measuring range	0 ~ 620 cone penetration
2	Constant temperature of water bath	1. "Temperature measurement range" 0.00～ 99.99℃； 2. 2. "Temperature control range" Low temperature: 20 ℃ lower than ambient temperature, high temperature: 60.00 ℃; 3. "Display resolution" 0.01℃;; 4. "Temperature control accuracy"≤±0.5℃；
3	Time control	1. "Time display and control" 0-60 seconds (arbitrary setting); 2. "Display resolution" 0.1 seconds; 3. "Time control accuracy"≤ ±0.1 S；
4	Displacement	It adopts high-precision LVDT displacement sensor, split structure, and there is no friction when the taper rod falls. 1. 1. "Base range" 0-640mm 2. "Display resolution" 0.01mm（ 0.1 penetration;）； 3. "Relative displacement accuracy" ≤±0.1mm；
5	Store data	200
6	Assembly of sliding parts	The mass of full-size cone is 102.5 ± 0.05g, and the mass of cone rod is 47.5 ± 0.05g; 1/2 scale standard conical body weight: 22.5 ± 0.0025 g, cone shaft weight: 15 ± 0.0025 g; 1/4 ratio standard cone and cone rod total mass: 9.38±0.025g;
7	Overall dimensions	390mm × 310mm × 575mm (length × width × height);
8	Working power supply	220±10%VAC/50Hz；
9	Whole machine power	Maximum 350W;
10	Net weight of whole machine	12.5Kg;
