I.Purpose And Scope Of Application

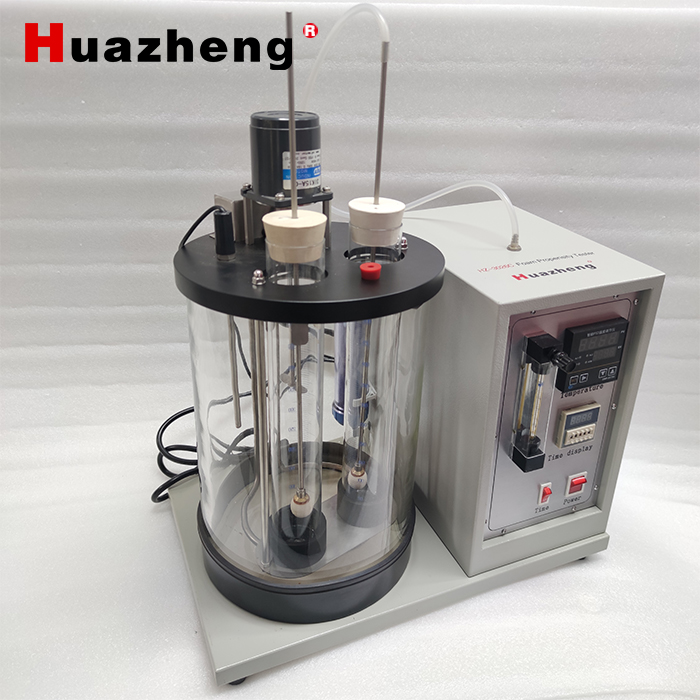

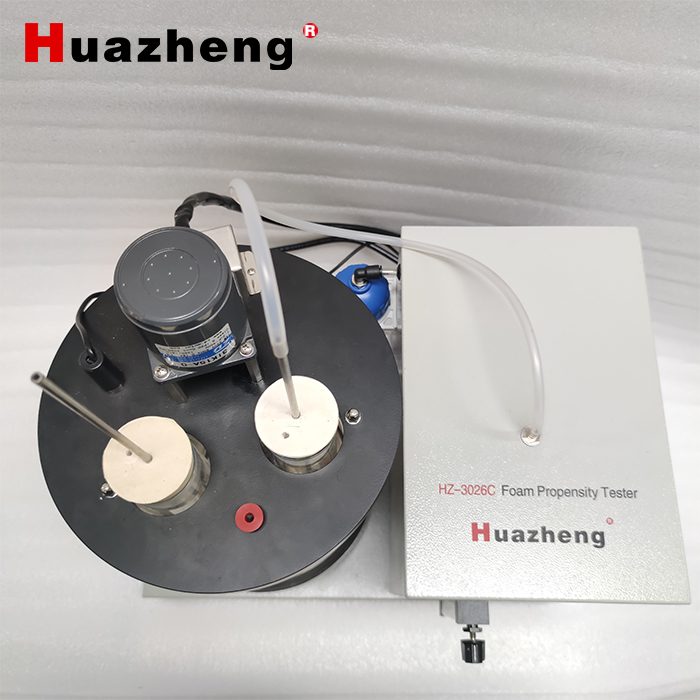

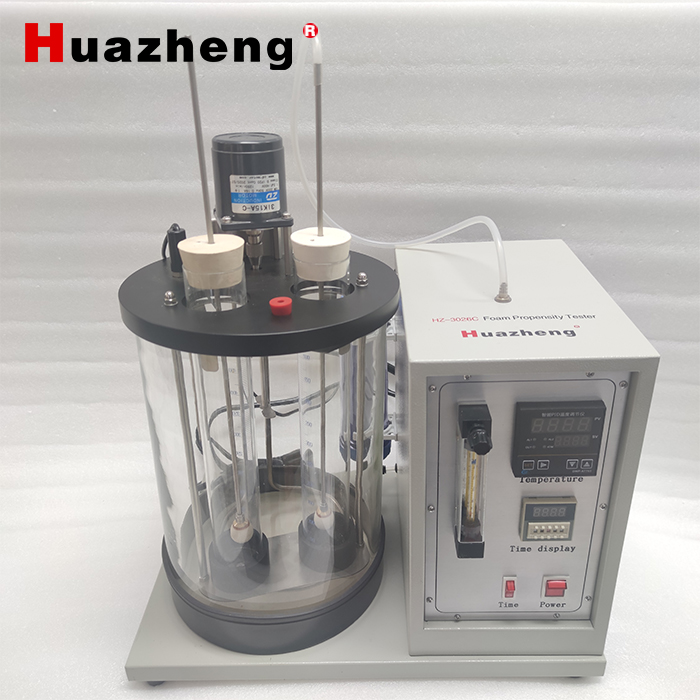

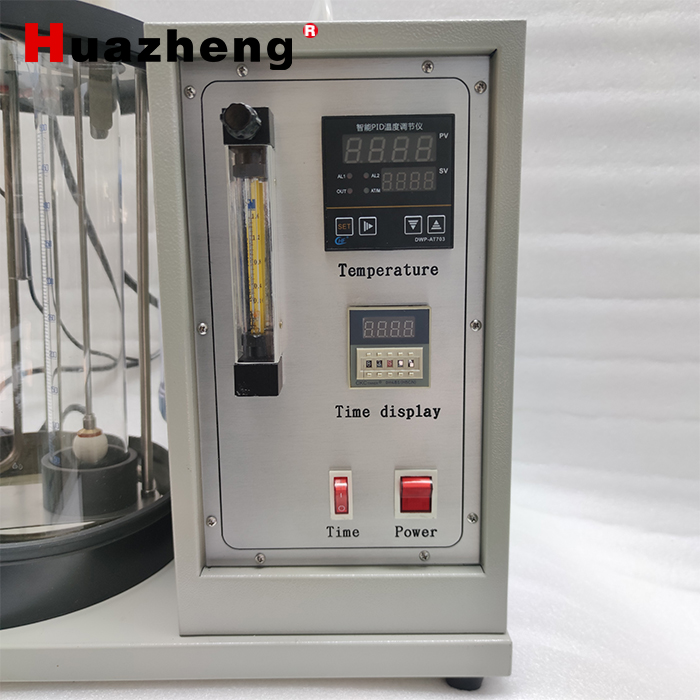

   HZ-3026C Coolant Foam Tendency Tester is composed of a control box, including a flowmeter, a branch pipe, a temperature control meter, and a timer. By using platinum resistance sensors and digital temperature regulators, the bath temperature can be maintained within the range of 88 ℃± 0.2 ℃, with high control accuracy, intuitive display, and good reliability. The instrument also uses digital time relays, automatic timing, and timed alarms.

II.Main Technical Specifications And Parameters

● Working power supply: AC220V; 10%, 50Hz;

● Heating power: 2000W;

● Air flow: precision flow meter control

● Temperature control range: room temperature~99.9 ℃

● Timing method: Automatic timing, can be set by oneself

● Environmental temperature: -10~+40 ℃;

● Relative humidity: ≤ 85%;

● Instrument size: 350 * 280 * 360mm Weight: 25kg

● Packaging size: 600 * 480 * 580mm Weight: 31kg
