Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

I. General Information

1.1 Characteristics and Applications

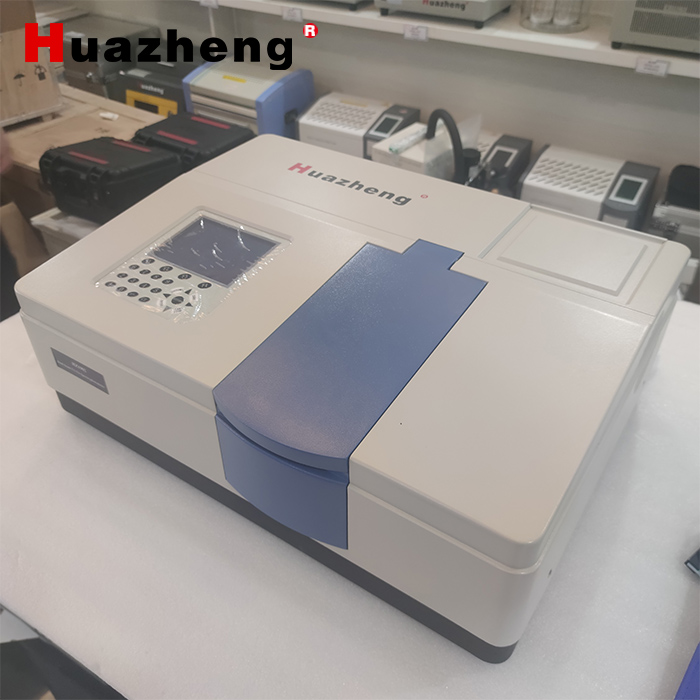

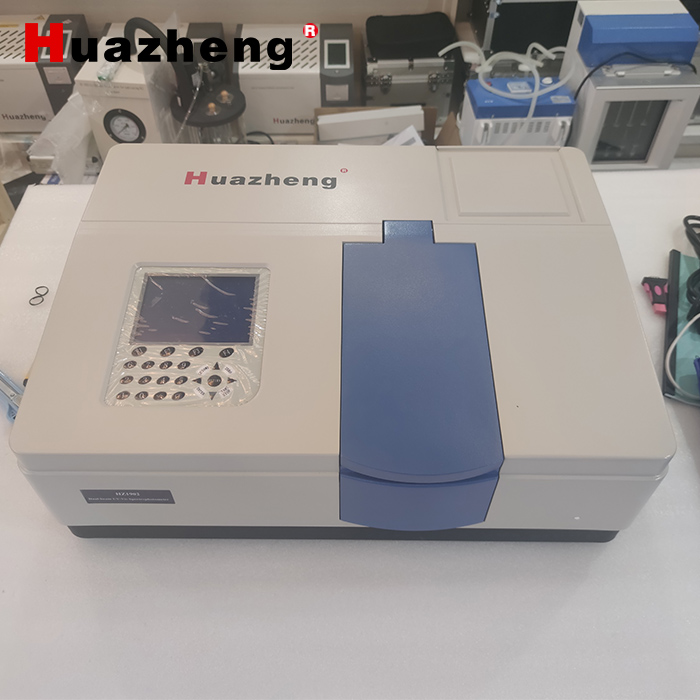

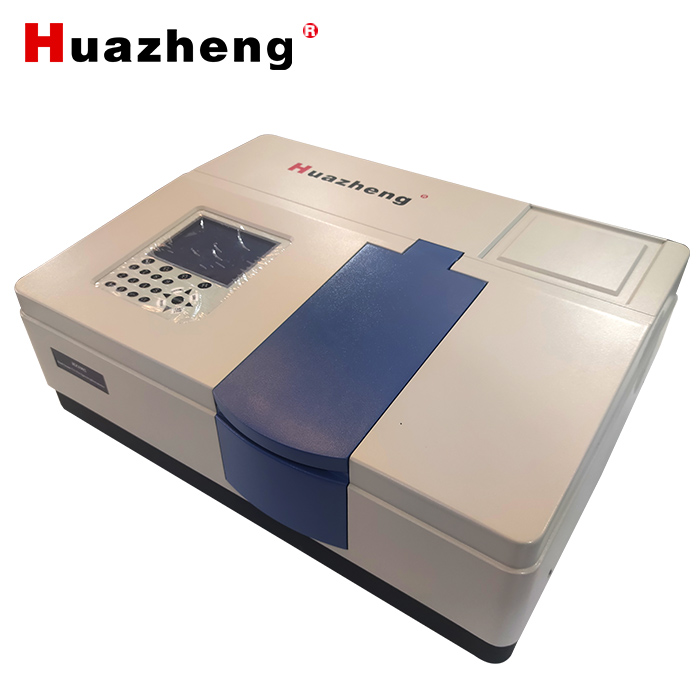

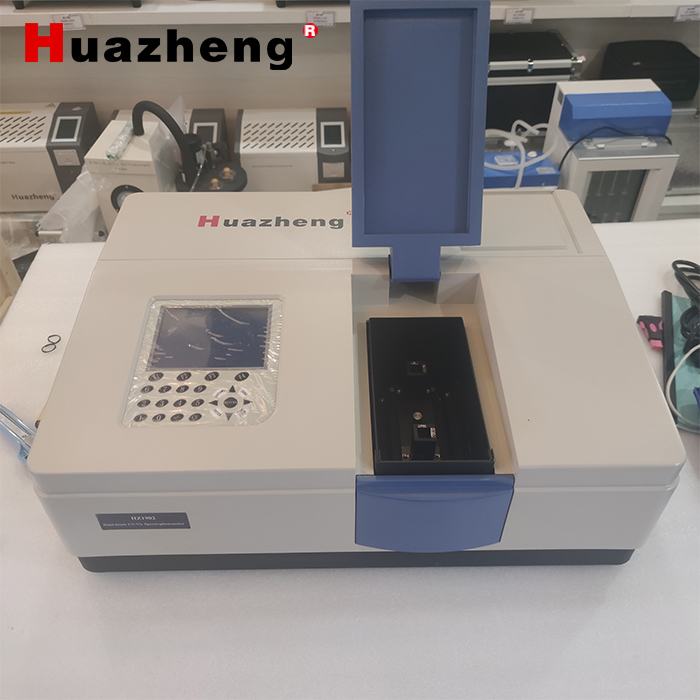

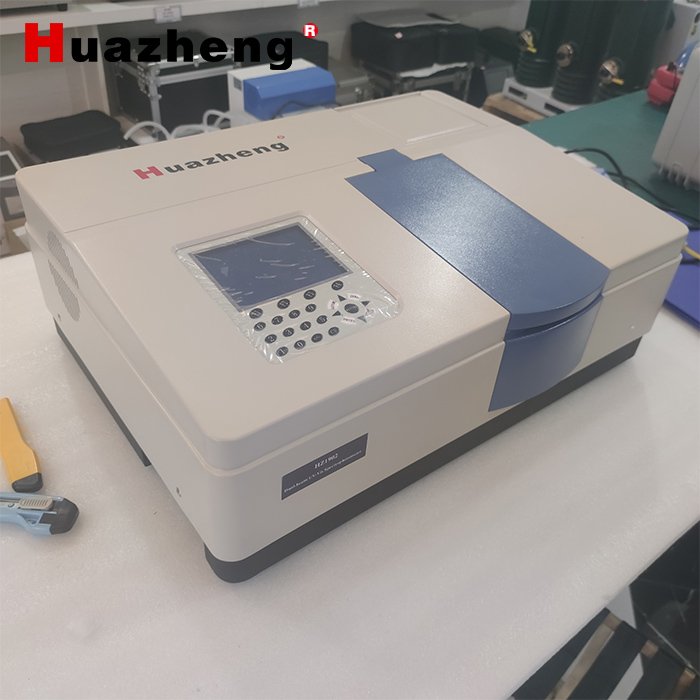

HZ1902is a double-beam UV/VIS Spectrophotometer with a scanning function. It has a wider range of spectrum and is of high quality. Due to its built-in micro-computer system, plus excellent optical and electric circuit system, rational mechanical structure and a large LCD display screen, the instrument will surely be an effective and visual means useful to lab analysis in all kinds of industries.

HZ1902UV/VIS Spectrophotometer adopts a man-machine dialogue operation method. It is easy to learn. Menu at the large LCD screen allows every item to be chosen and accepted corresponding to each operation step. In this way, you can perform function you needed. The change of lamp is simple. By turning several screws, you change the lamp, which will be at the optimal position without being complicated light-adjustment.

Instrument is designed to be protected by software program to restore the instrument to normal work status in a failure.

Being an excellent practical UV/VIS spectrophotometer, HZ1902provides fast and simple analytical methods to be widely used in organic, inorganic, petroleum, pharmacy, environment, bio-chemistry, medicine, food and other national economy departments for QC and QA.

1.2 Main Specifications and Technical Parameters

1.2.1 Technical Indicators

Model	HZ1901	HZ1902
Photometric	Transmittance,Absorbance,Energy,Reflectivity
Wavelength Rang	190nm～1100nm
Spectrum Bandwidth	1nm	2nm
Stray Light	≤0.03%T （220nm NaI、360nm NaNO2）
Wavelength Accuracy	±0.3nm
Wavelength Repeatability	0.1nm
Photometric Range	-4A～4A
Photometric Accuracy	±0.3%T(0～100%T) ±0.002A(0～0.5A) ±0.004A(0.5～1A)
Photometric Repeatability	0.001A(0～0.5A) 0.002A(0.5～1A)
Stability	≤±0.0004A/h（2 hours after turn-on, at 500nm）
Noise	≤0.0003A
Baseline Flatness	≤±0.0008A	≤±0.001A
Power	AC 100V~240V 50Hz/60Hz
Light source	Deuterium & Tungsten-halogen lamp
Scanning Speed	Fast Middle Slow

1.2.1 Use Conditions

Ambient Temperature ：	5℃～40℃
Ambient Humidity：	≤80%
Elevation	≤2000m
Operation Voltage：	AC 100V~240V 50Hz/60Hz
Rated Power	200W
Fluctuation range of Voltage	AC 85V~265V 50Hz/60Hz
Fuse Model/Fuse Specification	RF1-20 /F3.15AL250V
	There shall be no strong electric-magnetic interference and vibration in room.

1.2.3 Specifications

Dimensions：	650mm (long)×450mm (wide)×220mm (high)
Weight：	25kg

1.3 Main Functions

There are two main functions: automatic control and analytical test of information processing.

1.3.1 Automatic Control

1. Switch on the instrument, the instrument performs self-diagnosis its internal system work status and automatic wavelength calibration.

2. Wavelength change and automatic location

3. Automatic switching of filter

4. Automatic switching of lamp

5. Automatic choice of optimal switching point of lamp souce

6. Display and print of altas and data

7. Display of error information

1.3.2 Analytical Test and Information Processing

1. Spectrum scan

2. Single wavelength quantitative analysis (including multi-valences regression concentration measurement)

3. Two and three wavelength quantitative analysis (including multi-valences regression concentration measurement)

4. Multi-valences derivative measurement

5. Multi-wavelength measurement

6. Chemical-dynamic measurement

7. Combination and operation of curves, multi-valences differential smooth of curves, reduction and amplification of alta and storage and call-in of curves.

8. Identification, searching and print of peak values
