Features

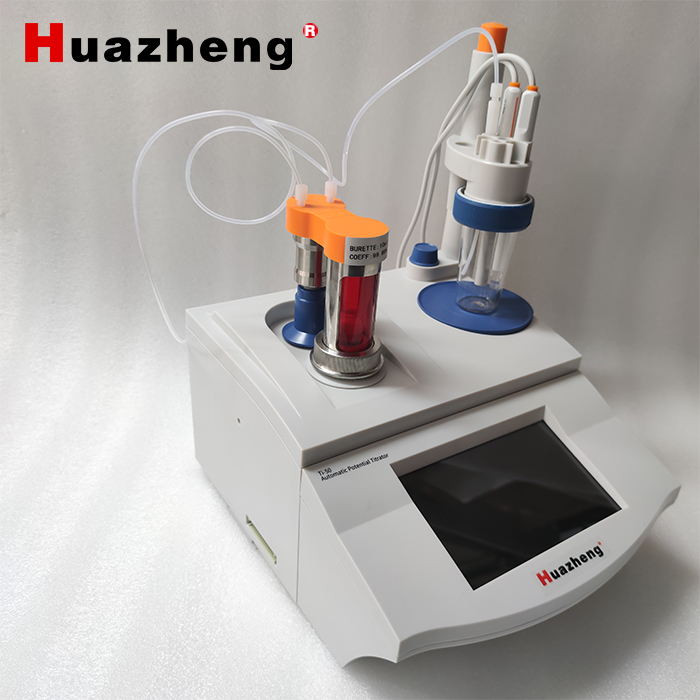

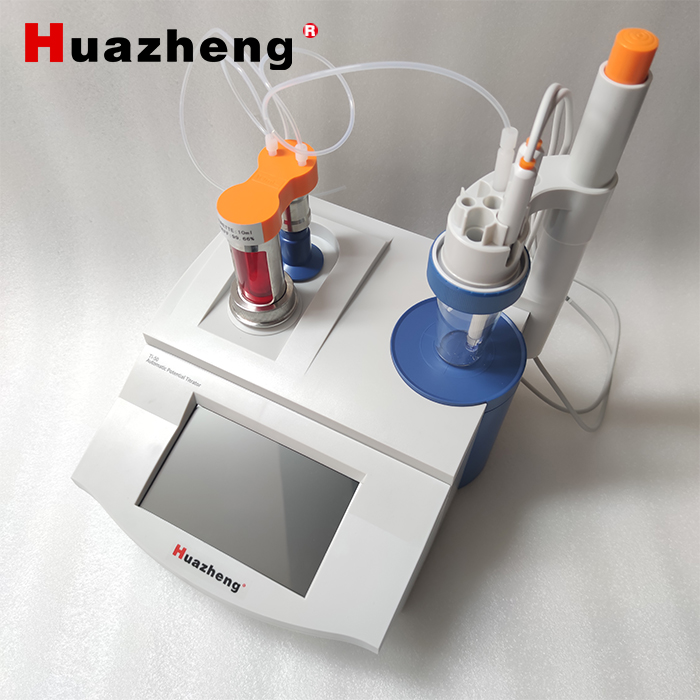

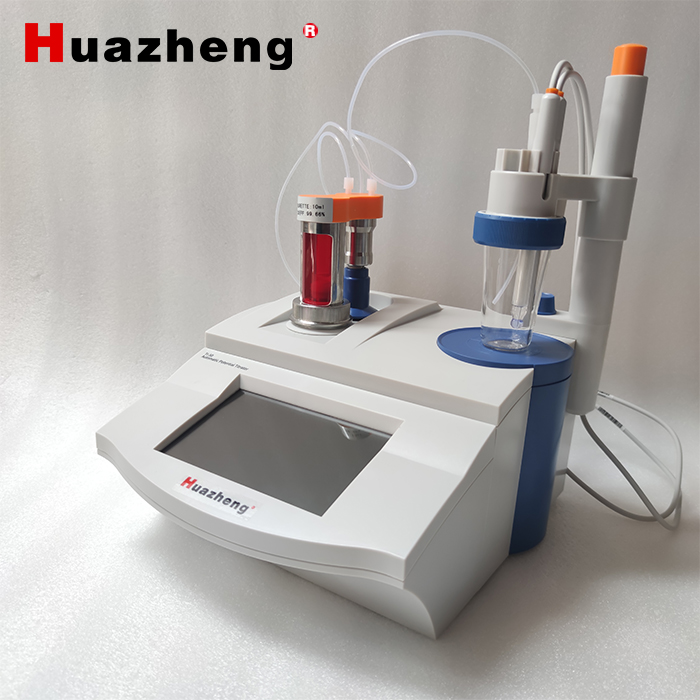

Model Ti-50 Automatic Titrator is a new product on the basis of model ZDJ-5. It has

below characteristics:

◼ Adopt new microprocessor technology, using 7 “TFT touch screen, reach 65 k

color; support simple operates by sliding.

◼ It is valve-burette integration that user can change directly, which reducing the

problem of interference between different solutions in different titration. It

supports various burettes 10 ml,20 ml.

◼ The transmission system has been improved to reduce the size of the meter

and noise during operation. The stirring system adopts PWM technology to

adjust the speed of stirring system.

◼ The meter supports upper stirrer.

◼ The titration system applies the material which resists perchloric acid and it

can perform non-aqueous titration.The meter supports double high impedance

input.

◼ It can add a titrate unit to meet special requirements of customers, as group

titration of double pipes.

◼ It supports automatic calibration of pH electrode.

◼ Support multiple measuring units, such as potential measuring unit, dead-stop

measuring unit, conductivity measuring unit, etc; it takes potential measuring

unit as default configuration, users can also add measuring unit according to

their needs, such as dead-stop, conductivity, etc.

◼ It manages all titration by titration method, supports view, copy, edit and create

of titration methods; all titration methods include the equipment, such as

measuring unit, titrate unit and the parameters of the stirrer, measuring

parameters, measurement results, etc.

◼ There are different measurement methods corresponding to different

measuring unit. In potential measuring unit, it supports dynamic titration(DET

titration), endset titration, equivalent titration (EQU titration), constant titration,

manual titration and two titrations accompanied with the titrator.

◼ It has a good operation interface, easy to use, can real-time display relevant

test method, titration curve and measure results.

◼ The instrument controls the whole titration according to the process, allows

users to edit titration process and create special titration method to satisfy

inquiry applications.

◼ After titration, the meter can generate special titration modes directly which

enlarges the operating range. The meter can perform pH measurement, acid

and alkali titration, oxidation-reduction titration, precipitation titration,

complexometric titration and non-aqueous titration with different kinds of

electrodes.

◼ Support U disk, allow read-write of titration method and titration results.

◼ The meter supports titrant management, up to 5 kinds of titrants.

◼ The meter supports formula editor, allowing users to customize the result

calculation formula, including numbers, + - * / ( ), system variables,

user-defined variables, up to 50 characters long.

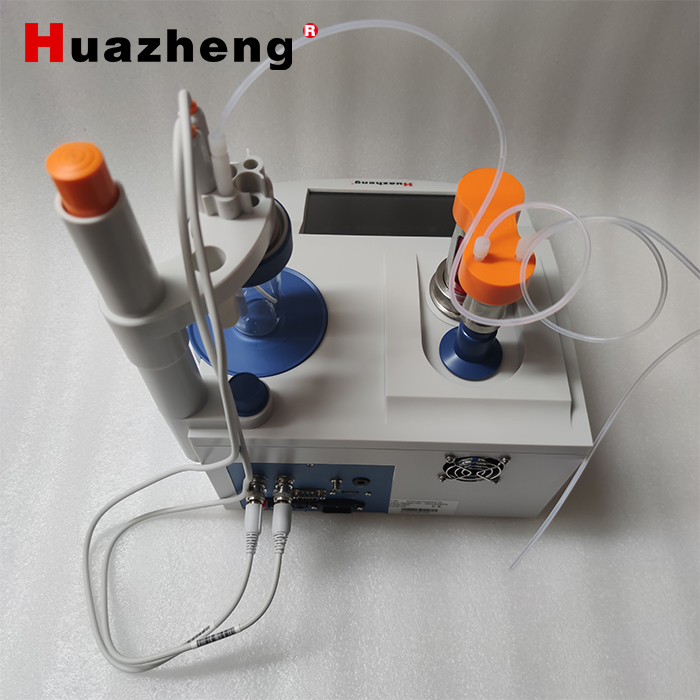

◼ The meter has USB interface and RS-232 which can be connected to the

computer. It is controlled by the professional software. It can display titration

curve and its first and second derivatives on the computer. It can edit and

modify the titration mode, and statistic.

◼ With the function of power-off protection, the meter will save the measuring

data and parameters when it is power off at un-normal condition.

◼ It can save 100 sets of titration methods.

◼ Support GLP Norm and can save 200 sets of titration data.

◼ It has statistical function, allows users to statistics, view, analyze and compare

titration results.

◼ Support electrode calibration, has management function of buffer group,

automatic identification of pH buffer GB, DIN, NIST, etc. Up to three-point

calibration.

◼ Support multiple approaches to start a titration, including from the initial interface, shortcut, titration method management, etc.

◼ Allow users to create shortcuts, create a shortcut for functions and titration

methods frequently used, and start directly.

◼ Support equipment management, allow debugging and control separately.

Management of each device.

◼ It has operation guides, simple and brief tips on normal operations,

convenience for users.

◼ Support user management, up to eight users; support password management.

◼ Support Chinese and English Language.

◼ Supports firmware upgrade, a variety of upgrade ways, including upgrade

directly with U disk.

Specifications

1. Measuring range

pH: (0.000～14.000)pH;

mV: (-1999.90～1999.90)mV;

Temp：(-5.0～105.0)℃.

2. Resolution

pH: 0.001pH;

mV: 0.01mV;

Temp：0.1℃.

3. Accuracy of electric unit

pH: ±0.01pH±1 bit;

mV: ±0.03% Full Scale;

Temp：±0.3℃.

4. Burette volume accuracy

10mlburette: ±0.025ml;

20mlburette: ±0.035ml.

5. Reproducibility of titration analysis: 0.2％.

6. Reproducibility of electric unit: ≤0.2mV.

7. Stability of electric unit: ±0.3 mV±1 bit/3h.

8. Sensitivity of controlling titration: ±2mV.

9. Normal working conditions

Environments temperature:（5.0～35.0）℃;

Relative humidity: ≤80%;

Power supply: (220±22)V, Frequency(50±1)Hz:

There should be no disturbance of electromagnetic field

10. Dimension (mm)

Main titration device: 340×400×400 (length × width × height);

Auxiliary titration device: 200×110×230 (length × width × height).

11. Weight(kg): about 10.
