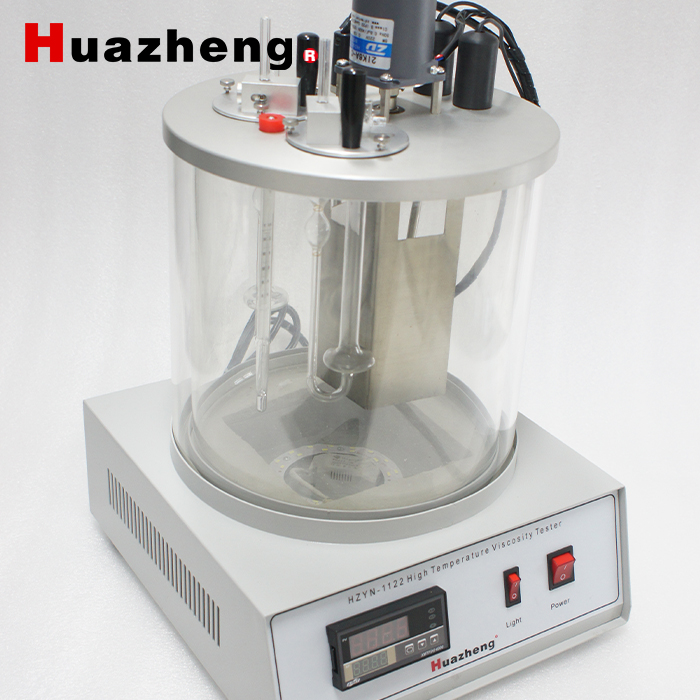

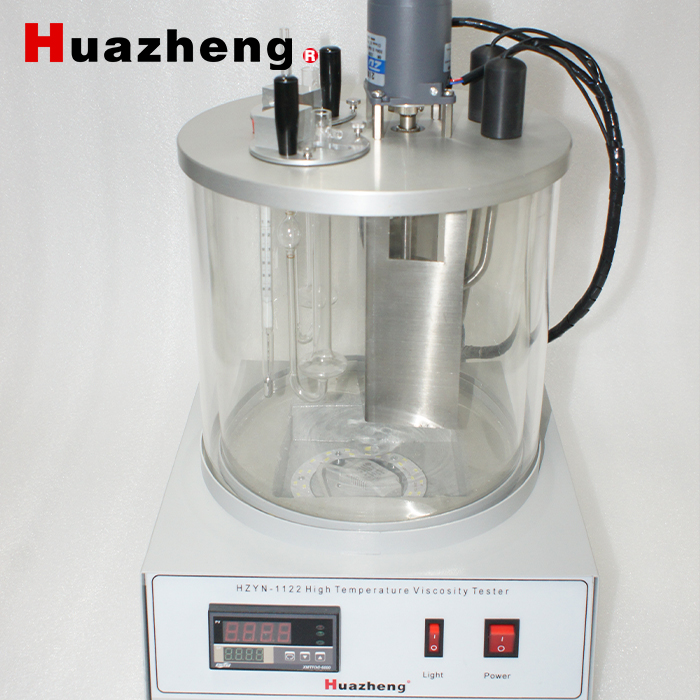

I. Overview

The HZYN-1122 kinematic viscosity tester is designed and manufactured in accordance with the GB/T 265 standard, which can accurately measure the kinematic viscosity of petroleum products in strict accordance with the standard description.

HZYN-1122 Kinematic Viscosity Tester is suitable for measuring the kinematic viscosity of liquid petroleum products (Newtonian liquid), and its unit is mm²/s.

The HZYN-1122 Kinematic Viscosity Tester has beautiful and generous appearance design, reasonable structure design, convenient operation and accurate results.

II.Standard description

At a certain constant temperature, measure the time for a certain volume of liquid to flow through a calibrated glass capillary viscometer under gravity. The product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the liquid at that temperature.

III. Structural features

The HZYN-1122 kinematic viscosity tester uses a digital temperature control meter to control the temperature of the constant temperature bath. The temperature control range is 40～100℃, and the temperature control accuracy is ±0.1℃. The use of digital temperature control table can visually display the set temperature and actual temperature, and it is easy to set the temperature and correct the temperature difference.

The HZYN-1122 kinematic viscosity tester is equipped with two viscometer clamps, which can keep other samples to be tested at the same time during sample measurement, which improves work efficiency.

The constant temperature bath of the HZYN-1122 kinematic viscosity tester is circular, which is conducive to the constant temperature of the constant temperature bath. The bottom feet can be adjusted to make the constant temperature bath in a horizontal state. It is in full compliance with the standard description, which improves the accuracy of the measurement results.

IV. Technical parameter

Power supply：AC 220V±10%  50 HZ

Heating power：1400W

Temperature control range：40～100℃

Temperature control accuracy：±0.1℃

Capillary type: Pin’s capillary viscometer

Viscometer clamp: 2 sets

Bath size: 250 mm in diameter, 300 mm in height
