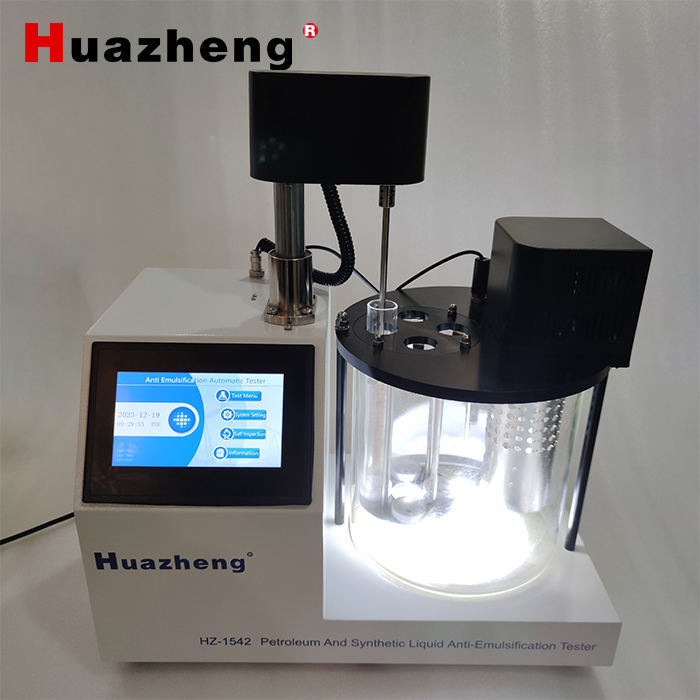

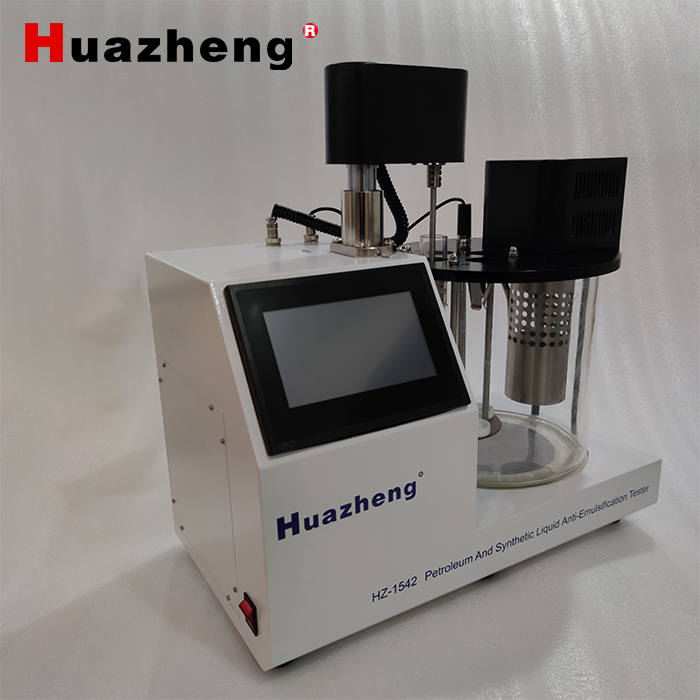

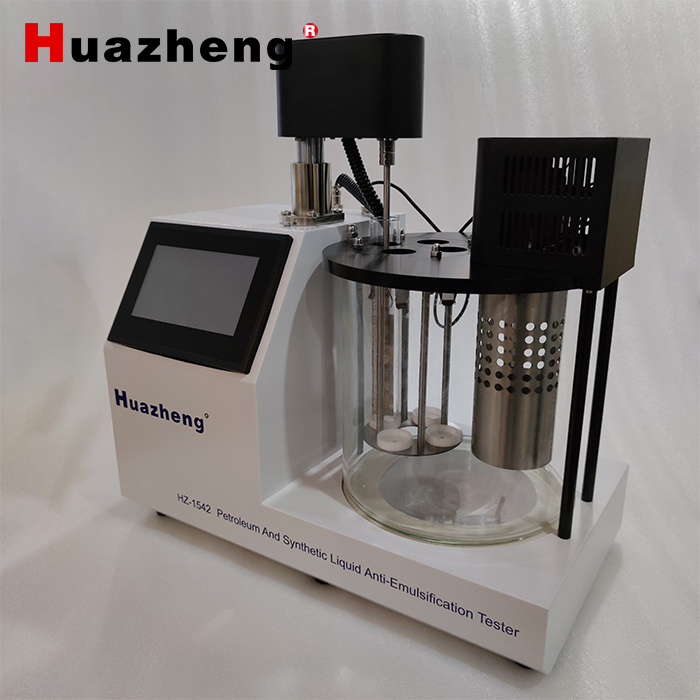

I. The Instrument Characteristics

1, high-definition color touch screen, clear interface display, easy to operate;

2. Using microcomputer control and PID self-tuning temperature control technology; High temperature control precision and reliable performance.

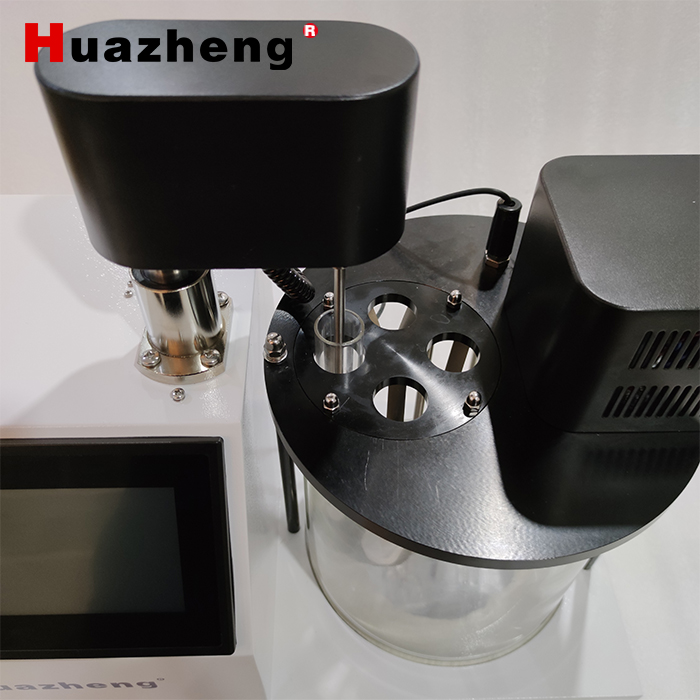

3. The stirring device automatically rises and falls; Mechanical transmission, stable and reliable.

4, four samples are kept at constant temperature at the same time, and four samples are separated, so that the working efficiency is improved.

5. Imported PT100 temperature sensor is adopted, which has high temperature measurement accuracy.

6. Parameters such as temperature control value and fine-tuning temperature value can be set, and the instrument can be saved after setting.

7, instrument temperature control, paddle lifting, stirring, timing, etc. automatically.

II. Technical Parameter

1、 Applicable standards: GB/T7605, GB/T7305 and ASTM D1401.

2、 Temperature control range: room temperature -100℃ (arbitrarily adjustable)

3、 Temperature control accuracy: 0.1℃

4、 Resolution rate: 0.01℃

5、 Operation mode: LCD touch screen

6、 Stirring time: 0-99 minutes can be adjusted at will.

7、 Timing time: 0-99 hours

8、 Number of experimental holes: 4 holes

9、 Stirring speed: 1500±15R/min

      10. Power supply: AC 220v 10% 50hz 5%.

      11. Maximum power: ≤ 1000 W.

      12. Ambient temperature: 5℃-40℃

      13. Ambient humidity: 10%-80%Rh
