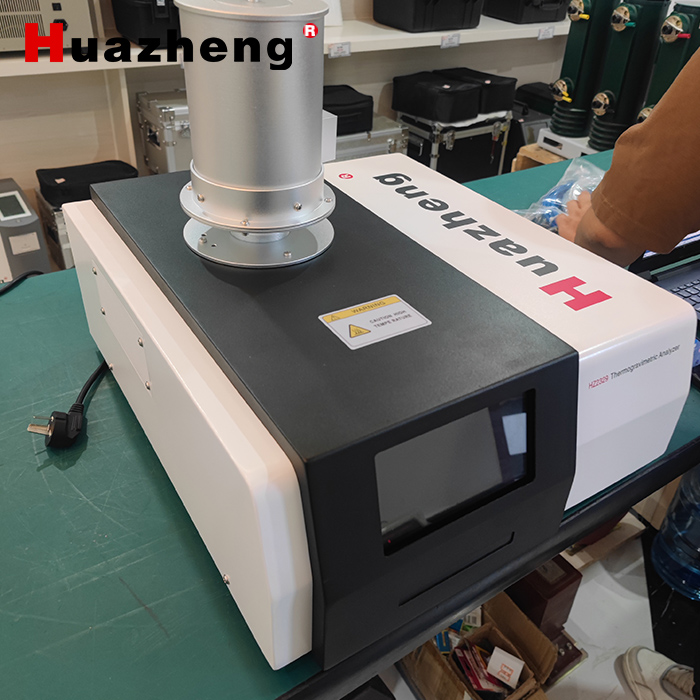

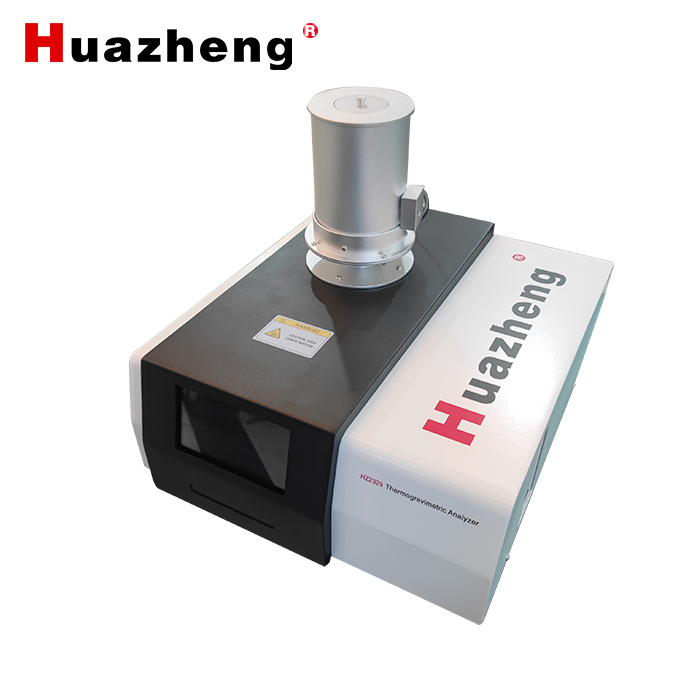

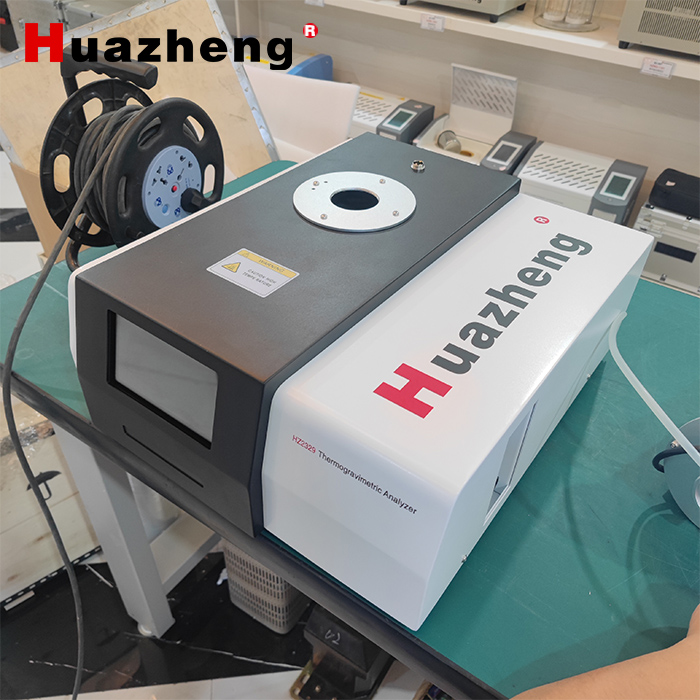

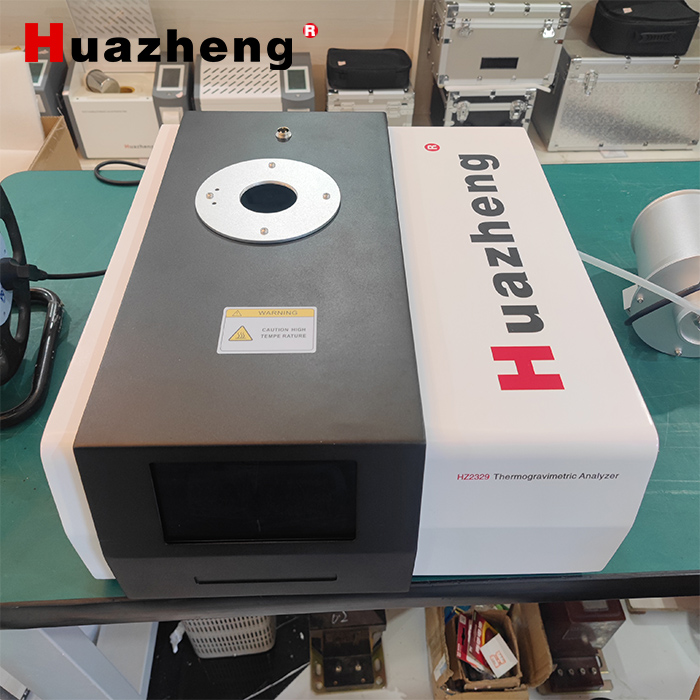

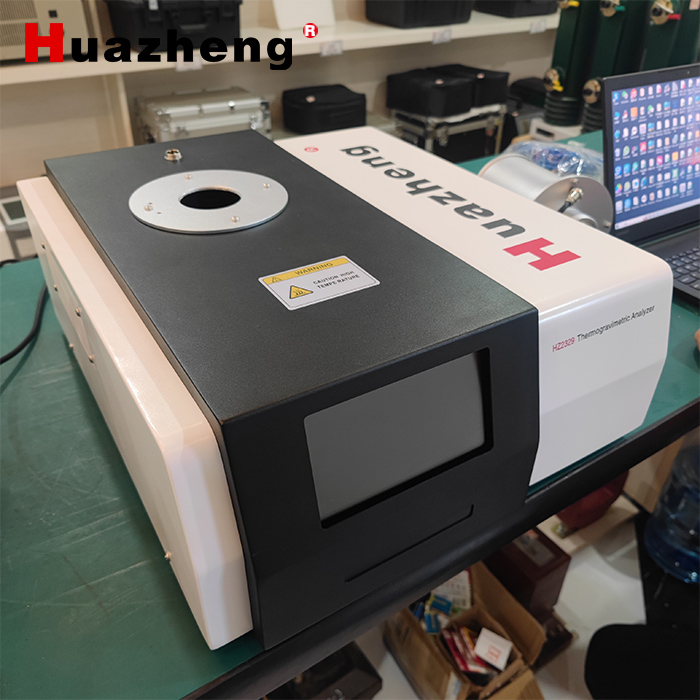

HZ2329 TGA Thermogravimetric Analyzer
HZ2329 TGA Thermogravimetric Analyzer
HZ2329 TGA Thermogravimetric Analyzer
HZ2329 TGA Thermogravimetric Analyzer
HZ2329 TGA Thermogravimetric Analyzer
HZ2329 TGA Thermogravimetric Analyzer
HZ2329 TGA Thermogravimetric Analyzer
HZ2329 TGA Thermogravimetric Analyzer
HZ2329 TGA Thermogravimetric Analyzer
HZ2329 TGA Thermogravimetric Analyzer
HZ2329 TGA Thermogravimetric Analyzer

TGA Thermogravimetric Analyzer

HZ2329 TGA Thermogravimetric Analyzer



Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.


I. Overview

Thermogravimetric method (TGA) is a technique to measure the relationship between mass and temperature at programmed temperature. When a substance is heated, it undergoes physical and chemical changes, and its mass also changes.

Thermogravimetric analyzer is an instrument that comprehensively studies the functional relationship between the above changes.


II. Instrument Technical Indicators

model

HZ2329

display mode

24bit color, 7-inch LCD touch screen display

TG range

1mg ~ 3g

TG resolution

0.01mg

temperature range

Room temperature ~1150℃

temperature resolution

0.01℃

temperature fluctuation

±0.01℃

Temperature repeatability

±0.1 ℃

heating rate

0.1 ~ 100℃/min

Temperature control mode

Heating, constant temperature and cooling (automatic program control)

programing control

Four-stage temperature control can be realized, and special parameters can be customized.

Curve scanning

Heating scanning

Atmosphere control gas

Two-way automatic switching (instrument automatic switching)

gas-flow rate

0-200mL/min

gas pressure

≤0.5MPa

Constant temperature time

0 ~ 300min can be set arbitrarily.

data interface

Standard USB interface

working power supply

AC220V/50Hz
