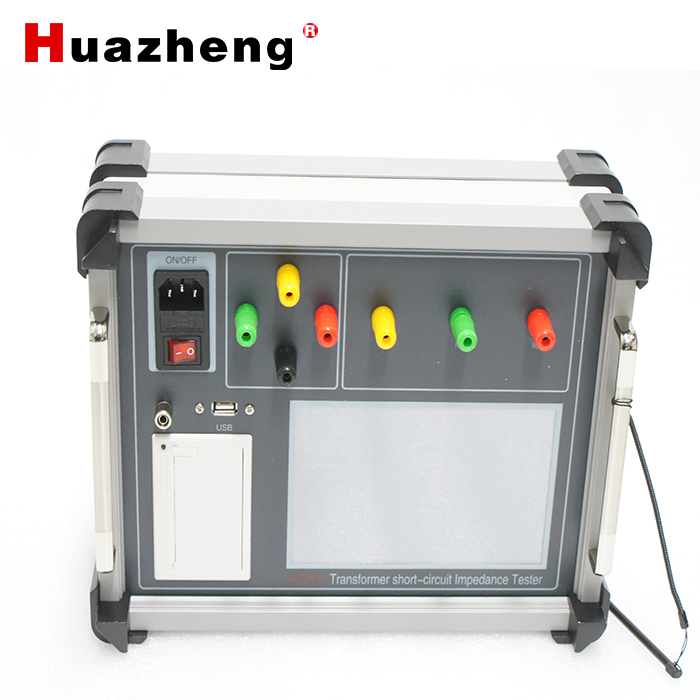

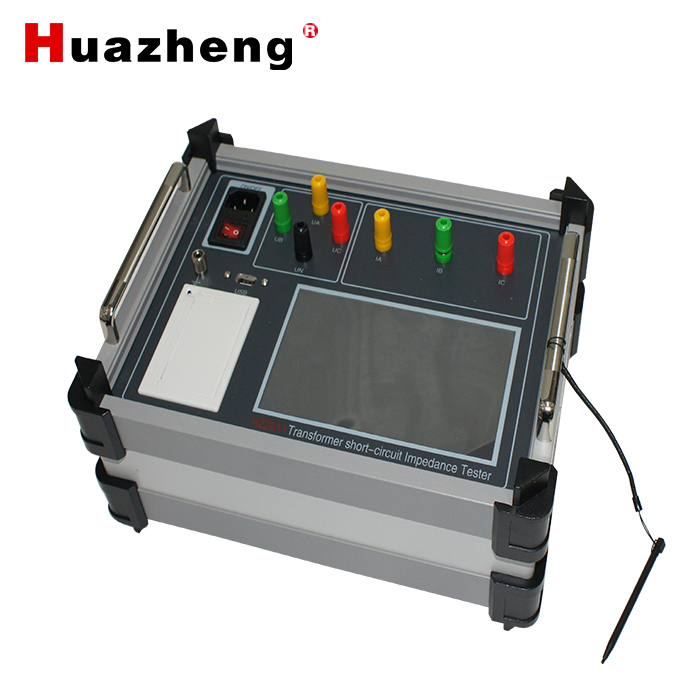

Huazheng Electric HZ2611 Transformer Low Voltage Short Circuit Impedance Tester

The transformer short-circuit impedance tester adopts the popular ARM processor, 168M main frequency and 128M memory, which can be expanded with 4G memory card. The LCD adopts a 7-inch high-definition color touch screen, combined with the emwin display interface, which makes the instrument interface friendly and easy to operate, and can be operated on a full touch screen without a keyboard. The instrument can support the database and can be exported through a USB flash drive or transmitted to the background computer through a data cable.

The circuit design of the instrument is exquisite and the idea is unique, which makes it superior in performance, powerful in function, small in size and light in weight. It can not only test the impedance load parameters of the transformer, but also measure the harmonic content and waveform on site. The instrument is powerful and easy to operate, providing a reliable basis for transformer parameter analysis.

 Main Specifications

1. Voltage measurement range: 0-20 phase voltage,

2. Current measurement range: 0-2A.

3. Measurement quantity Refined  Accuracy: 0.2% (power factor 1.0-0.2), 1% (power factor 0.2-0.01)

4. Working power supply: AC220V±15%

5. Working temperature: -10℃-40℃

6. Ambient humidity: 10%-85%

7. Volume: 320mm×230mm×140mm

8. Weight: 3kg (excluding test wires)

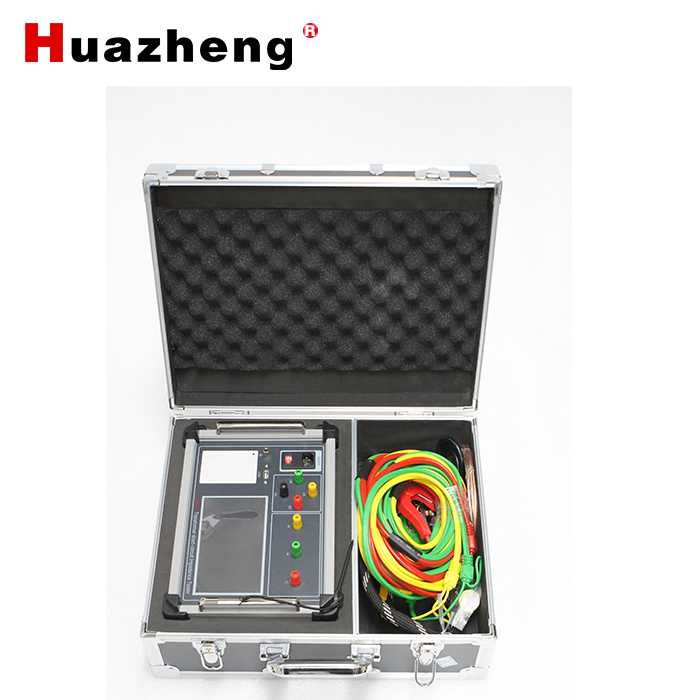

Packing List
