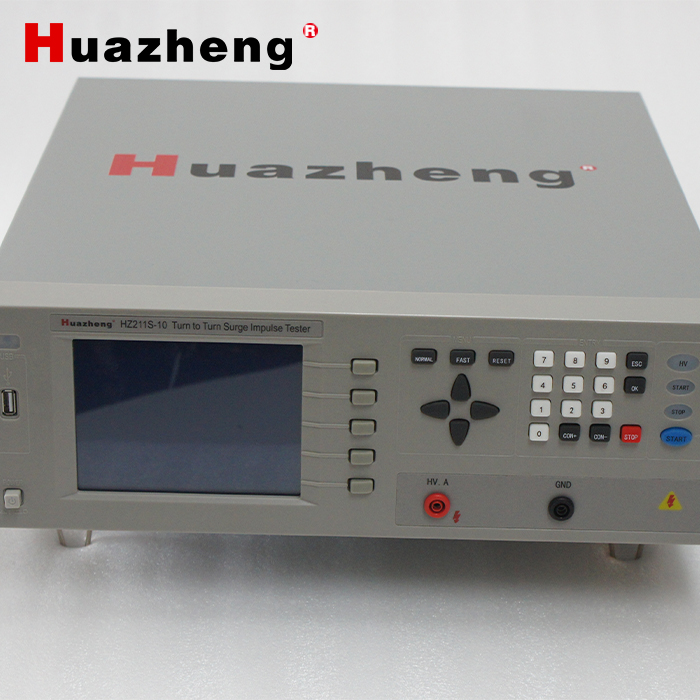

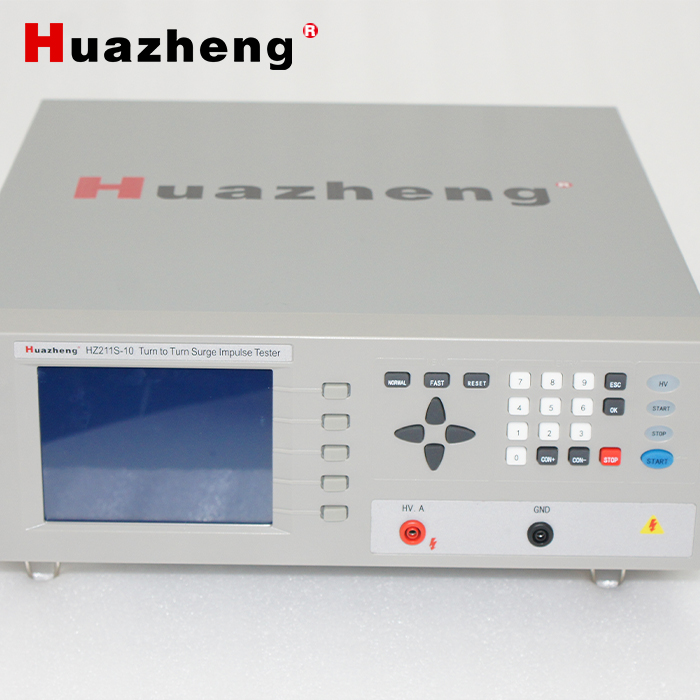

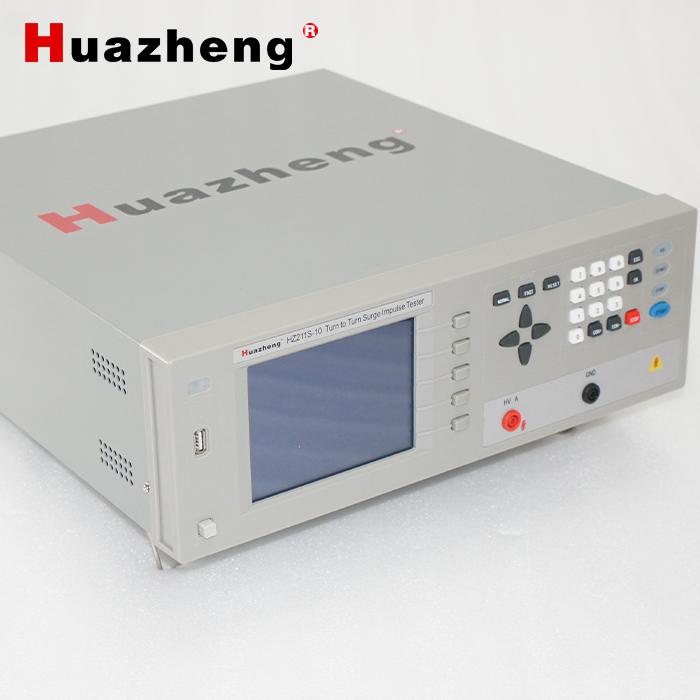

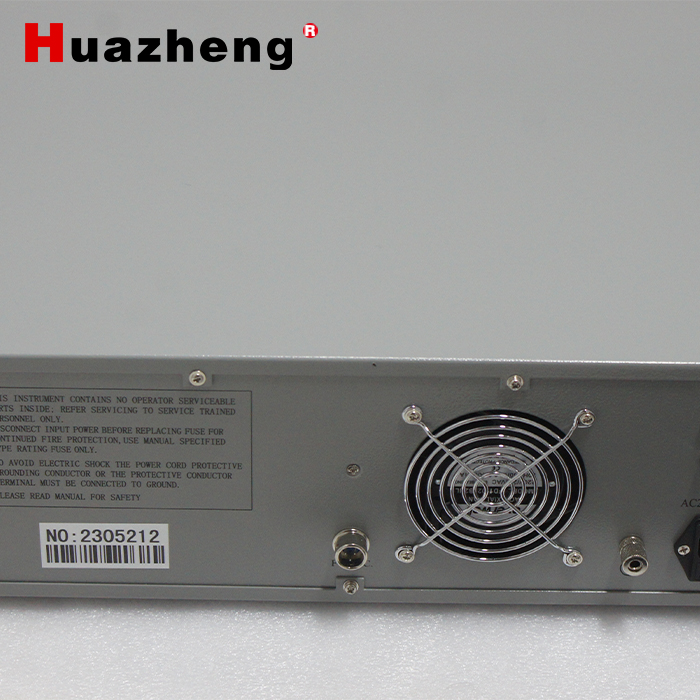

HZ211S-10 Turn To Turn Surge Impulse Tester-Other Transformer Test Series-Huazheng Electric Manufacturing (Baoding) Co., Ltd.

Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

I. Overview

1.1 Introduction

Turn to Turn Surge Impulse Tester(i.e. Digital interturn test instrument ) can efficiently carry out non-destructive electrical test on the component with some coil windings. Its principle is to apply the same pulse voltage on both coil winding under test and standard one, and then compare their transient waveforms, so as to test the quality of coil winding under test. Transient waveform (i.e. waveform of the damped oscillation occurring in the coil) can judge this winding’s inductance, quality factor, coil turn difference and interturn short circuit; if the winding is equipped with a core, it also can judge its material difference and so on. In the case of applying high-voltage pulse, the occurrence of corona discharge can also judge its poor insulation. In a word, for various elements to indicate the coil quality, their inspection can be completed within a short period of time.

HZ211S-10/HZ212S-10 series Turn to Turn Surge Impulse Tester, which is manufactured by our company, adopts micro computer technology to quantize various parameters of waveform, and then use the intuitive waveform for display and judgment. Its operation is simple, its judgment is accurate, and its degree of automation is high. The instrument is small in size, and light in weight, which is easy to carry.

1.2 Model selection of Turn to Turn Surge Impulse Tester

Due to different products to be tested, user needs to select an appropriate Turn to Turn Surge Impulse Tester according to the actual situation. The following table lists the features of some Turn to Turn Surge Impulse Testers for user selection.

	Instrument model	Description of main features
New style	HZ212S-10 series	LCD, multi-winding , saving the standard waveform, having the functions of storage, sorting, communication, and multi-channel comparison
New style	HZ211S-10 series	LCD, single-winding , saving the standard waveform, having the functions of storage, sorting, and communication
Old style	HZ212-05 series	LCD, multi- winding, saving the standard waveform, having the functions of storage, and multi-channel comparison(sorting and communication need to be customized)
	HZ211A-05 series	LCD, single winding, saving the standard waveform, having the functions of storage, and dual-channel comparison (sorting and communication need to be customized)
	HZ211-05 series	LCD, single winding, saving the standard waveform, having the function of storage (sorting and communication need to be customized)
	HZ201A-05 series	LCD, dual-channel comparison, having no function of storage, sorting, and communication

1.3 Main technical indexes

Model	HZ211S-03	HZ212S-03	HZ211S-05	HZ212S-10			HZ211S-10
Number of channels	1 channel	3 channel	1 channel	3 channel			1 channel
Range of pulse voltage	300V-3KV		500V~5KV				1KV-10KV
Accuracy of pulse voltage	±5%±15V		±5%±25V				±5%±50V
Step of pulse voltage	50V		100V				200V
Measurement speed	Approx. 5 times/s
High-voltage power supply control	Switching power supply is controlled by MCU
Numbers of impulses	Single EXT (1-29 times); continuous INT
Trigger mode	Manual, Foot control, PC
Detection and judgment mode	Area; differential area; corona discharge quantity; phase
Sound mode	"Up to standard” sound; ”Not up to standard” sound; mute
Storage capacity of waveform	100 waveforms and their parameters
Waveform resolution	A/D： 8 bit； sampling speed： 25nS （40MHz）； point number of waveform： 250
LCD	Resolution: 320 x 240; 5.1 inches; white letters on a blue background
Power	40W						50W
Power input	220VAC±10% 50Hz±5%
Dimension	400(W)×132(H)×430(D)				Weight	Approx. 10Kg
Environment condition	Operating temperature:10℃—30℃; Operating humidity: 20%—80% RH
	Storage temperature: 5℃—40℃; storage humidity: 5%—90%RH
Special functions and parameters	Customized according to user requirements
