I. Purpose And Scope Of Application

The sample burns in the standard lamp, and the change of flame height is reflected on the background of MM scale. The measurement results have high repeatability. The whole instrument has compact and complete structure and no circuit components, which conforms to GB / t382 and astmd1322.

II. Functional Features

1. Kerosene smoke point tester adopts millimeter scale background, which can read data clearly

2. The whole instrument is compact and complete

3. Kerosene smoke point tester adopts plug-in structure, which makes it more convenient to replace the wick

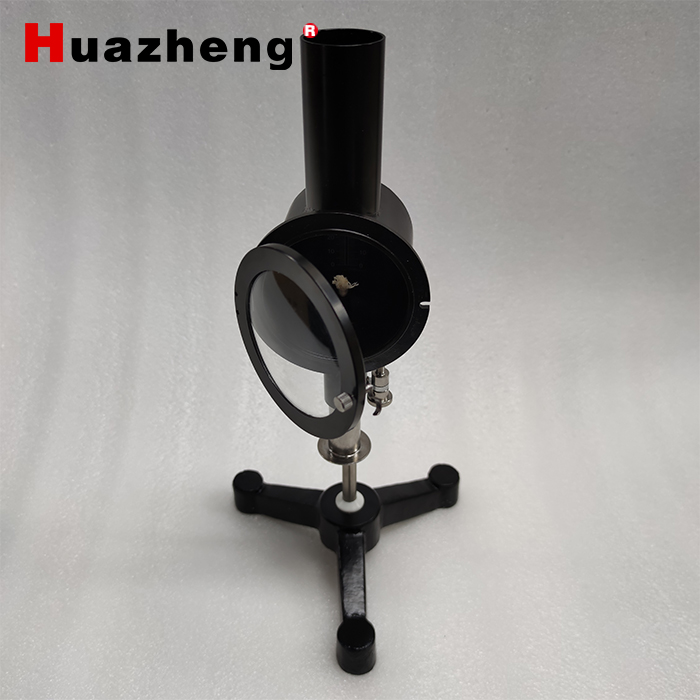

4. Kerosene smoke point tester adopts special glass observation window, which is easy to operate

5. The kerosene smoke point tester is easy to operate and has high repeatability

III. Technical Parameters

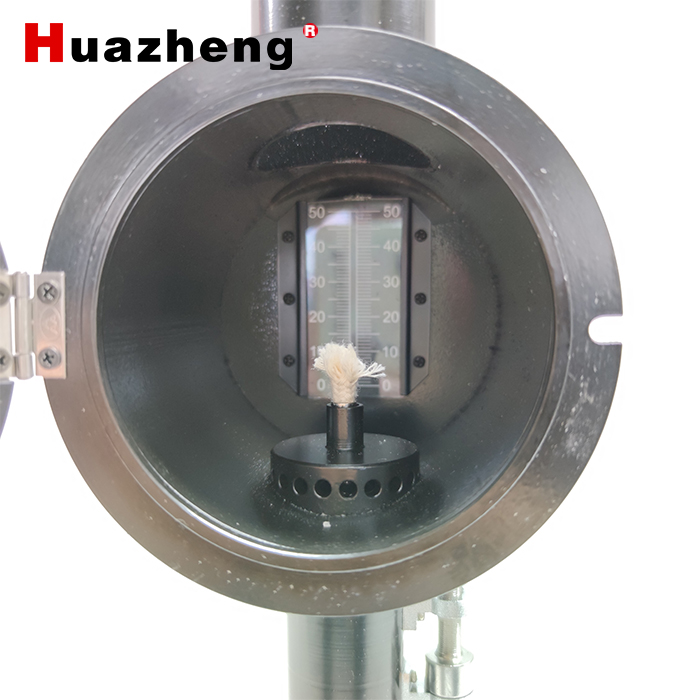

1. Ruler: the ruler shall be marked with white on black glass, in which the ruler shall be vertically divided into two equal parts by a white or black stripe of 2mm in the center. The measuring range of the scale shall be 50 mm and the division shall be 1 mm. Numbers are marked every 10 mm and longer lines are marked every 5 mm.

2. Wick conduit: the top of the wick conduit shall be accurately at the same level as the zero point on the scale.

3. Lifting seat: the total travel distance shall not be less than 10mm, and the movement shall be smooth and uniform.

4、 Ф Oil reservoir: the oil reservoir is mainly composed of oil reservoir body, wick tube and air duct. Its critical size conforms to GB / t382 and the inner diameter of oil reservoir body Ф 21.25 ± 0.05, length 109.0 ± 0.05; Inner diameter of wick tube Ф 4.7 ± 0.05, length 82.0 ± 0.05; Inner diameter dimension of air duct Ф 3.5 ± 0.05, length 90.0 ± 0.05
