I 、Features and uses

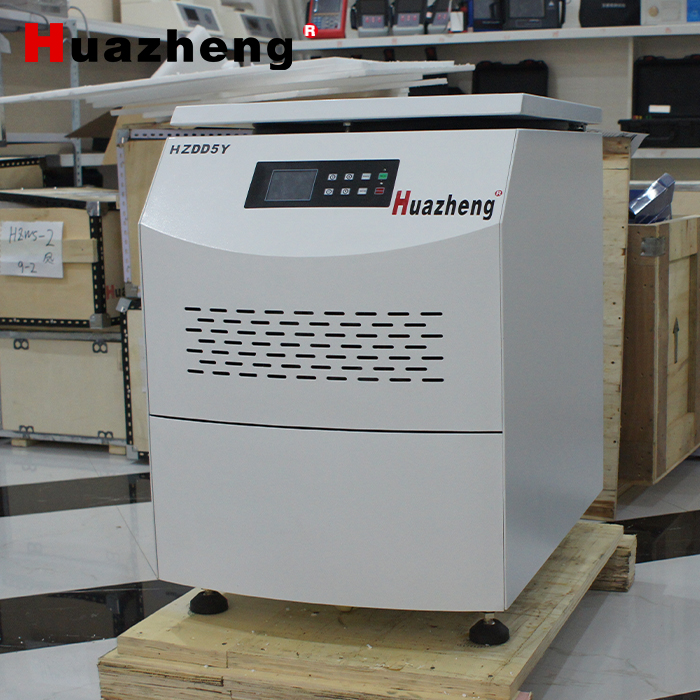

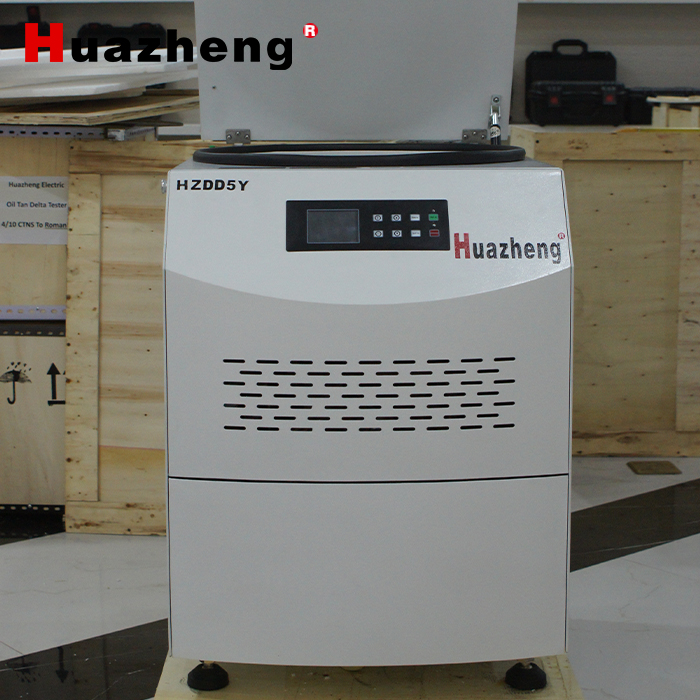

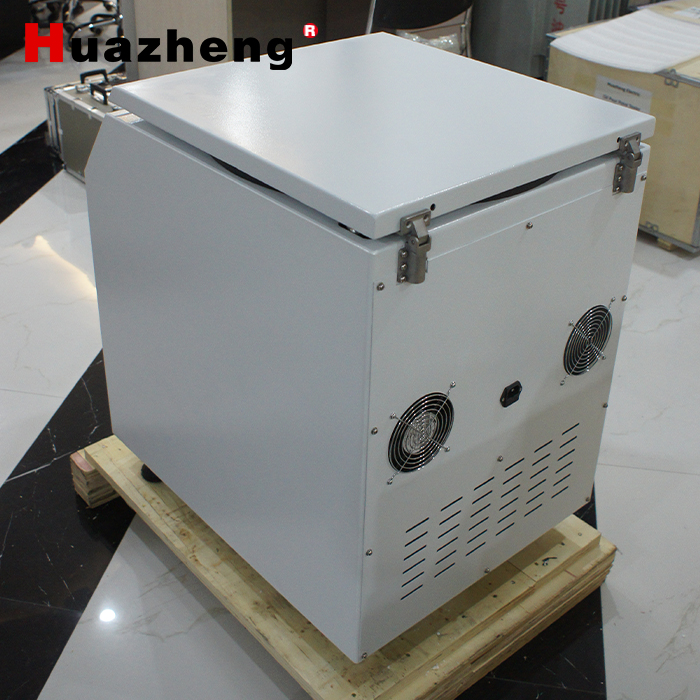

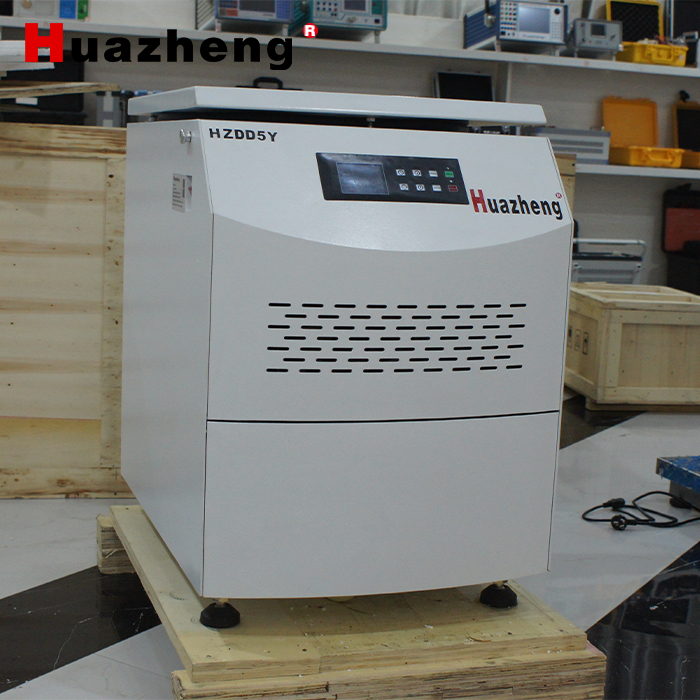

HZDD5Y crude oil water content determination centrifuge is a conventional instrument for centrifugal precipitation in medicine and biology, with the maximum speed of 5000r / min, the maximum capacity of 4 × 100ml and the maximum centrifugal force of 4300xg.

The instrument is driven by variable-frequency motor, the rotating speed and time are all displayed on LCD screen, the electrical control system is controlled by microprocessor, the key programming, simple operation, the instrument design is humanized and beautiful, and the structure is simple.

The cover of the instrument adopts electronic safe and reliable door lock. If the cover is not covered (the door lock is not locked), the instrument cannot be started. Do not open the cover when the instrument is running! The cover can only be opened when the speed is zero. If the cover is opened by mistake, the instrument will stop automatically and give an alarm to ensure the safety of the instrument in use.

The instrument adopts the optimized design scheme for the shock absorption system. The instrument operates stably with small vibration, low noise and good separation effect.

This instrument has the following main functions:

1.Automatic storage of all the running parameters, the next boot can be used directly;

2.When the maximum speed is over 500r / min, automatic speed reduction and shutdown protection will be provided;

3.Equipped with cover, overspeed and other protection functions.

This instrument conforms to YY / T 0657-2017 medical centrifuge industry standard.

II、Main technical parameters

Table 1
